MaESP ESP8266 OLED can work on many platforms, such as Arduino/GCC, and Python. by using WiFi/Bluetooth to achieve the IoT project. As a basic controller, ESP32 has very rich learning materials. This development board is a great idea to learn how to develop the Internet of Things for the beginner.

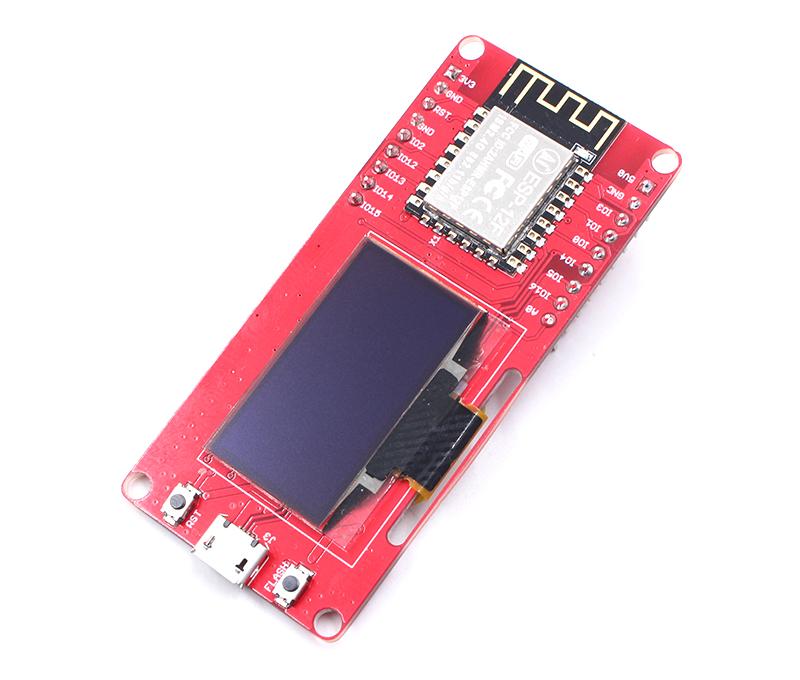

MaESP  ESP8266.jpg


  • Wi-Fi Protocols: 802.11b/g/n, 802.11 n support(2.4GHz), up to 72.2Mbps
  • Wi-Fi Frequency range: 2.4GHz ~ 2.5GHz
  • CPU: Tensilica L106 32-bit processor
  • Module interface: UART/SPI/SDIO/I2C/I2S/IR Remote Control/GPIO/ADC/PWM/LED Light & Button
  • RAM: 50KB
  • Integrated crystal: 26MHz crystal
  • Integrated SPI flash: 4MB
  • Power supply: 5V, integrate 5V-to-3.3V LDO
  • Operating current: Average 80 mA
  • Minimum current delivered by power supply: 500 mA
  • OLED: 1.3inch SSD1306/SSD1315
  • Recommended operation temperature range: --40℃ ~ +85℃
  • Board size: 70*32.6mm
  • Moisture sensitivity level(MSL): Level 3

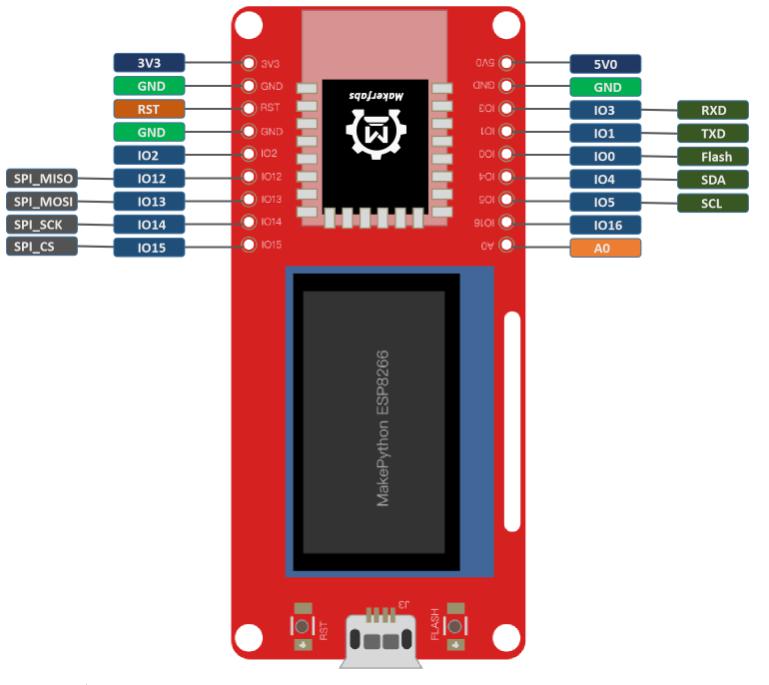

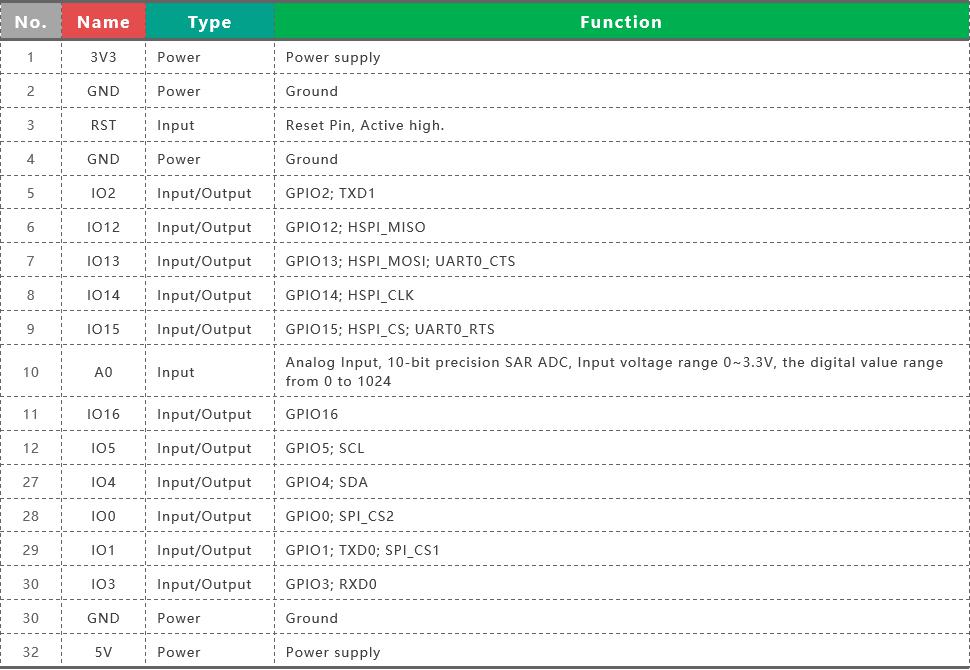

Pin Definitions

MaESP ESP8266_1.jpg


Booting Mode:

Booting PIN

Pin Default SPI Boot(Running Mode) Download Boot(Download Mode)
GPIO15 Pull-down 0 0
GPIO0 Pull-up 0 1
GPIO2 Pull-up 1 1


Github:MaESP ESP8266

MaESP ESP8266 OLED Projects in Thonny

Project_1: Ultrasonic Ranging

Note: MaESP ESP8266 OLED can be developed using micropython, provided the corresponding firmware is required. You can download the micropython firmware for esp32 from the official website and burn it.

Sensor Connection

We use the HC-SR04 Module at:


Connect the simple sensor to ESP32 boards as follows:

HC-SR04 Pins MaESP ESP32 Pins
Trig IO13
Echo IO12

Connect MaESP ESP8266 OLED to your computer through a USB cable.

How to use the Thonny

1.1 Installing Thonny

1.2 Connection

Connect MaESP ESP8266 OLED to your computer through an USB cable, follow the steps:

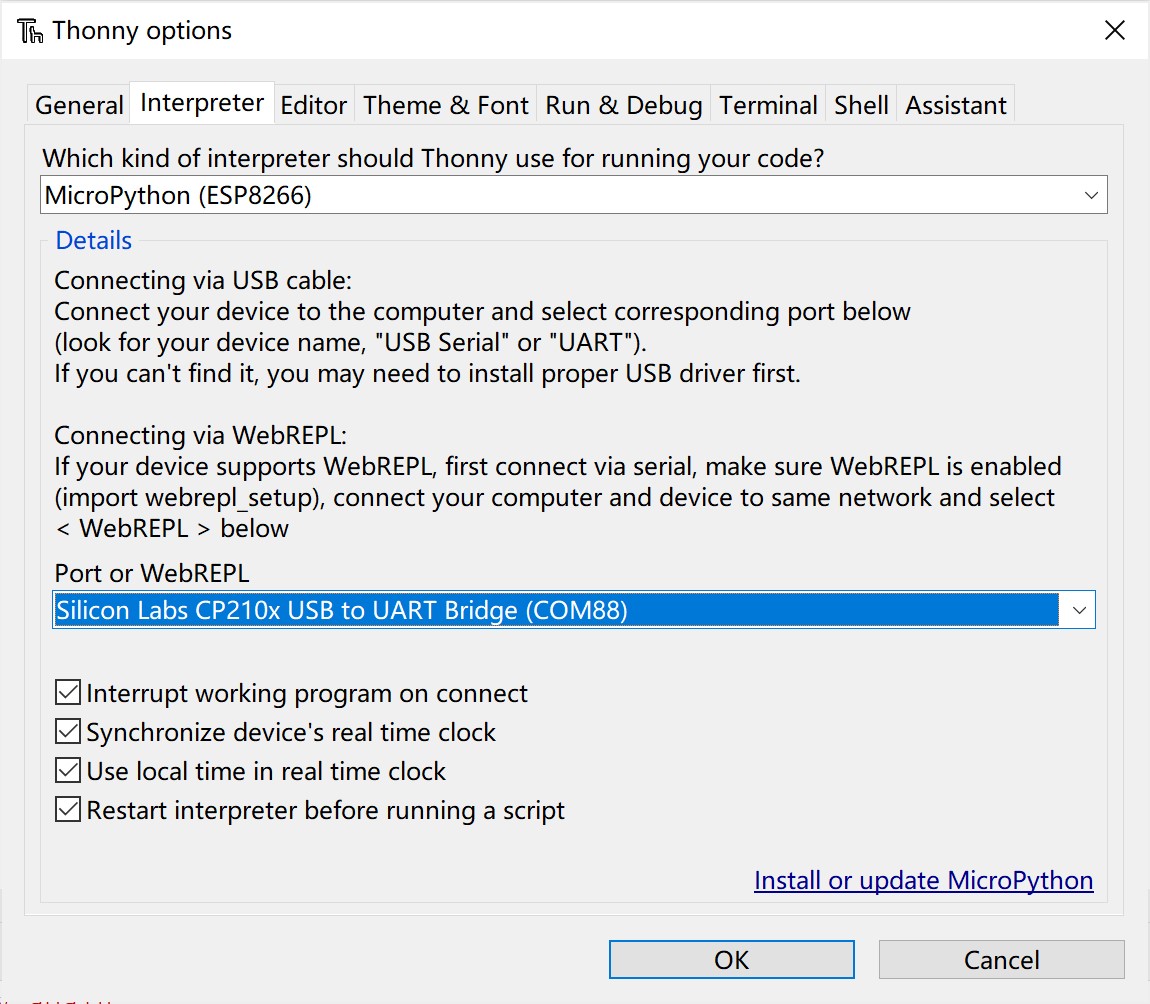

  • Tools > Option>>interperter

Choose the interpreter and port: MakePython_ESP8266_5.jpg

  • Go to View > Files

MaESP_ESP32thonny file.jpg

  • Go to the path where you downloaded the file, upload the code in Thonny.

MaESP_ESP32thonny upload.jpg

  • Click the, and Press the Connect button to establish serial communication with your board.

MaESP_ESP32thonny button.jpg


MaESP_ESP32thonny running.jpg


MaESP ESP8266 OLED Projects in Arduino

MaESP ESP8266 OLED also can develop in Arduino IDE, based on C/C++. You should add the ESP8266 SDK in Arduino, and use the Corresponding development firmware

How to increase the ESP8266 SDK in Arduino?

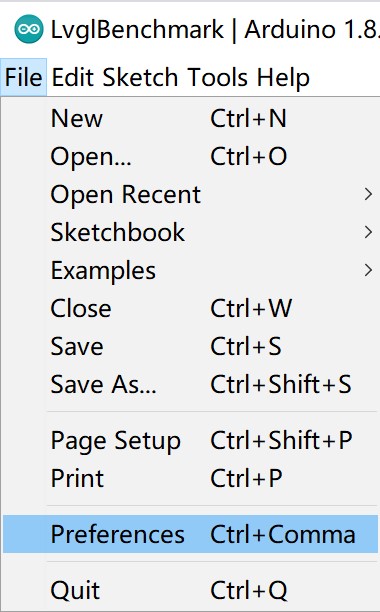

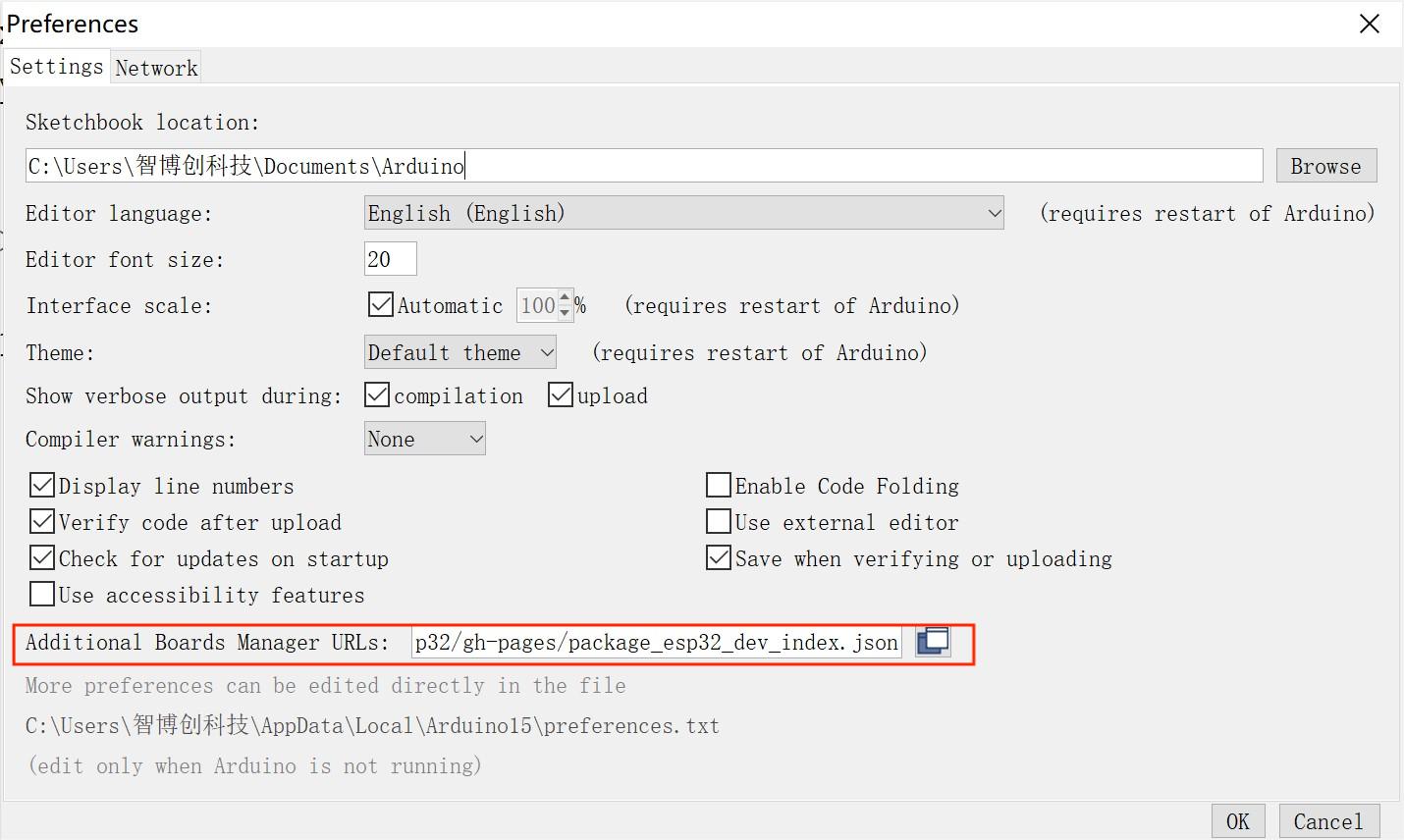

  • Open the Arduino IDE, go to File> Preferences

MaESP ESP8266_preferences.jpg

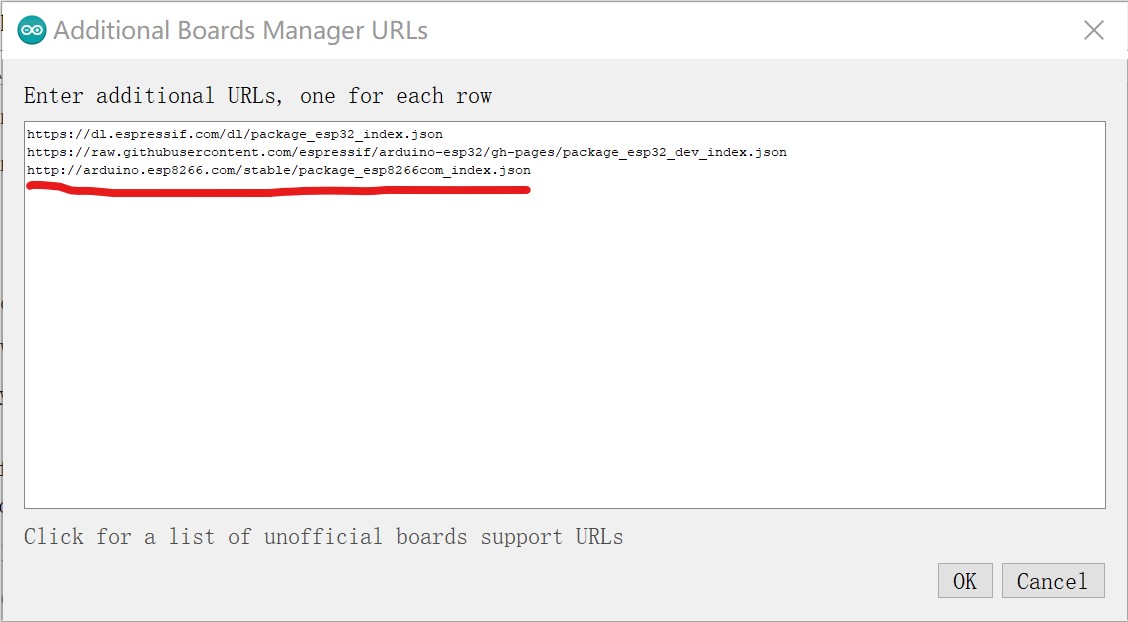

  • Enter the following into the “Additional Board Manager URLs” field:

MaESP ESP8266_add url.jpg

MaESP ESP8266_add url in.jpg

  • Click the “OK” button:

Search for ESP8266 and press install button for the “ESP8266 by Espressif Systems“:

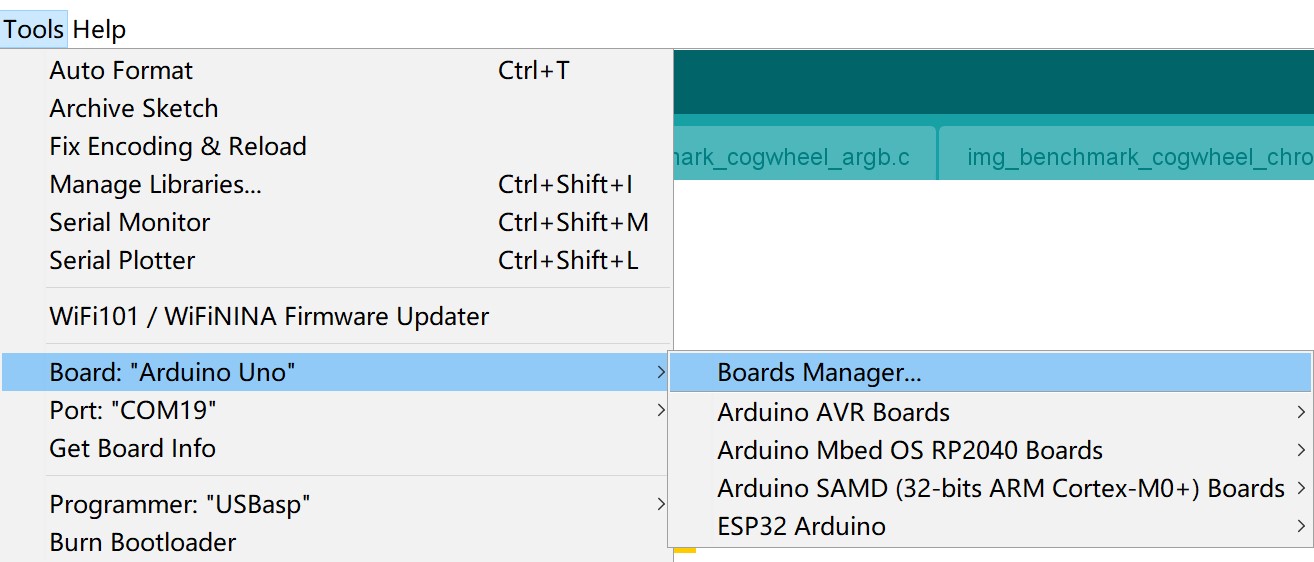

Open the Boards Manager. Go to Tools > Board > Boards Manager.

MaESP ESP8266_choose.jpg

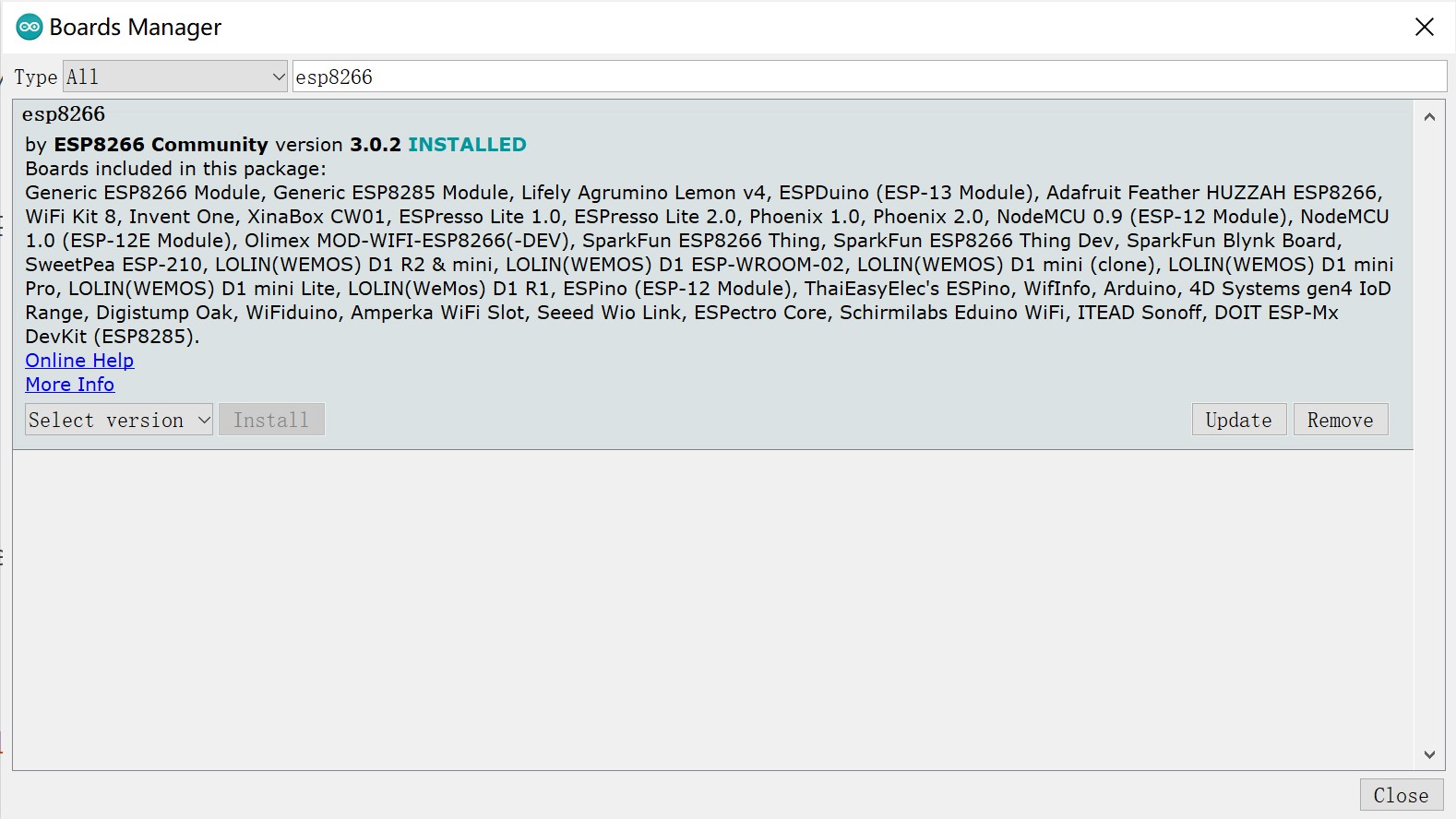

  • Search for ESP8266 and press install button for the “ESP8266 by Espressif Systems“

MaESP ESP8266 install.jpg

  • Select your Board in Tools >> Board menu, can choose the ESP8266 Boards.

MaESP ESP8266_congfig.jpg

Project_2: Web Server Control LED

1.Connect LED

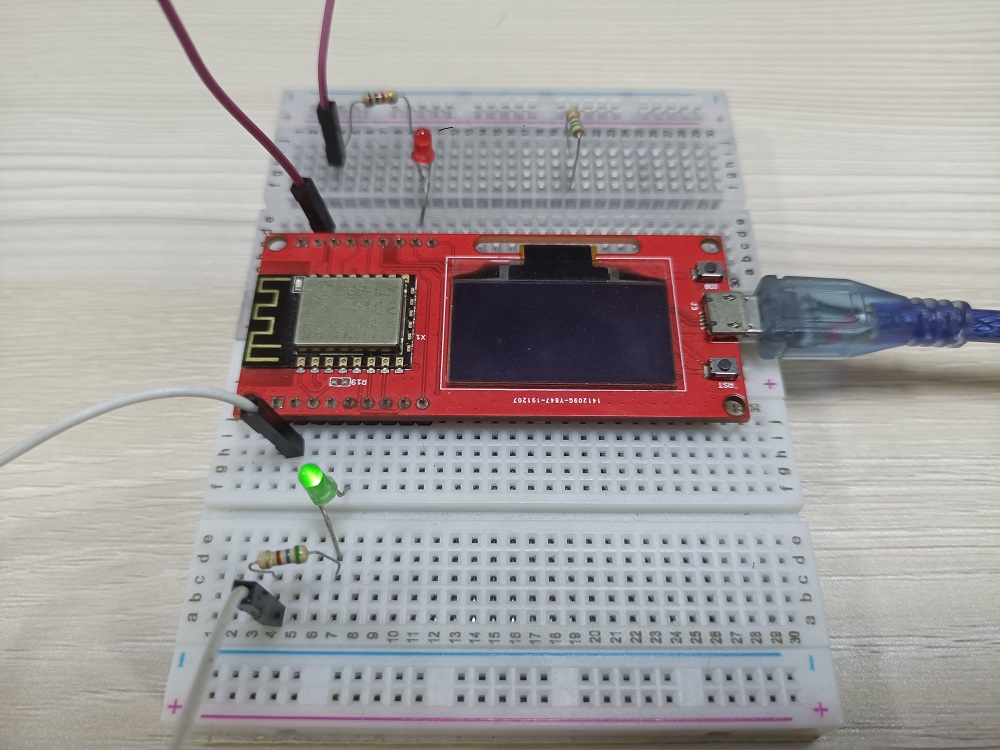

Connect the long LED pin to the end of the 330R resistor, the other end of the resistance is connected to 3.3v, the short pin of the LED lamp is connected to the IO2/IO16 of ESP32. As follows:

2.Connect WiFiMaESP ESP8266_NT

Open the GitHub. Click to download the MaESP ESP32 Arduino control in the example file.

Open the file and modify the 'SSID' and 'PASSWORD' to local WIFI and password:

const char* ssid = "Makerfabs";
const char* password = "20160704";

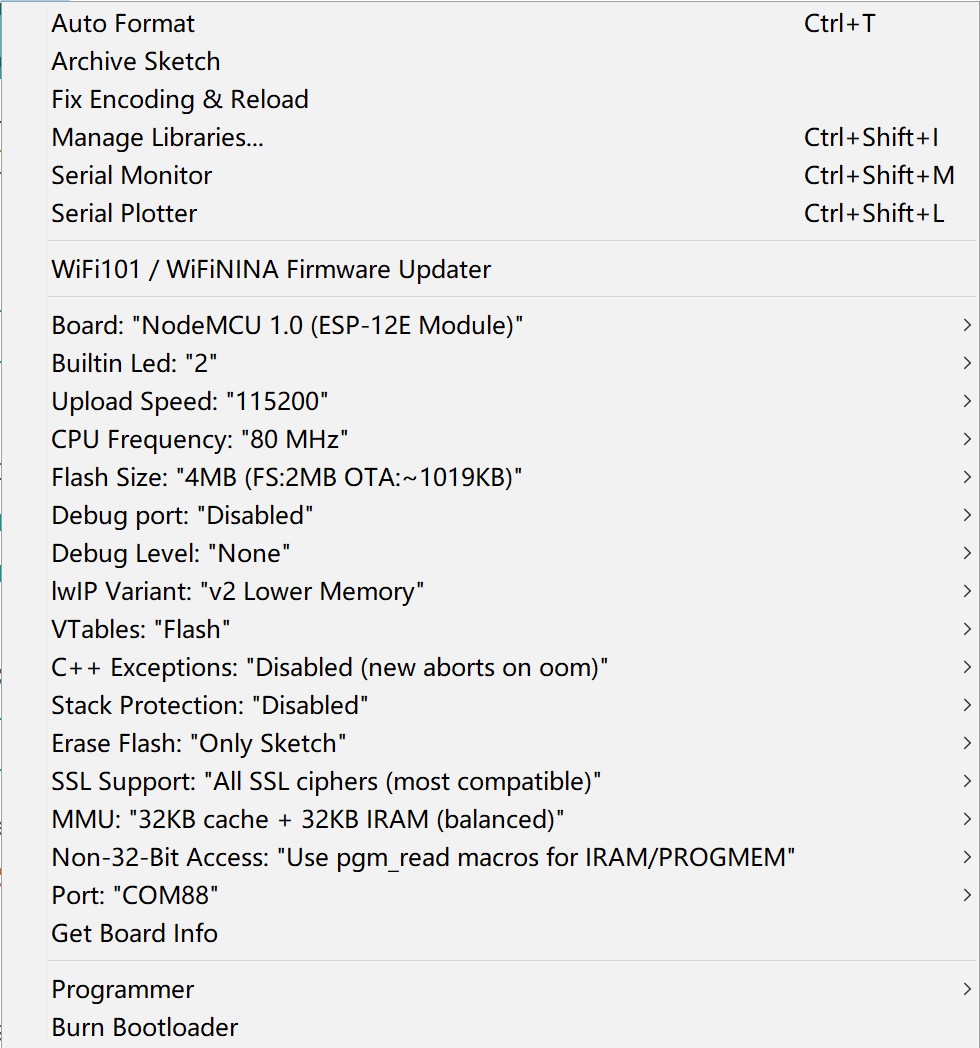

Select and set the parameter in the Tools menu, as the picture:

MaESP ESP8266_board config.jpg

MaESP ESP8266_led unload1.jpg

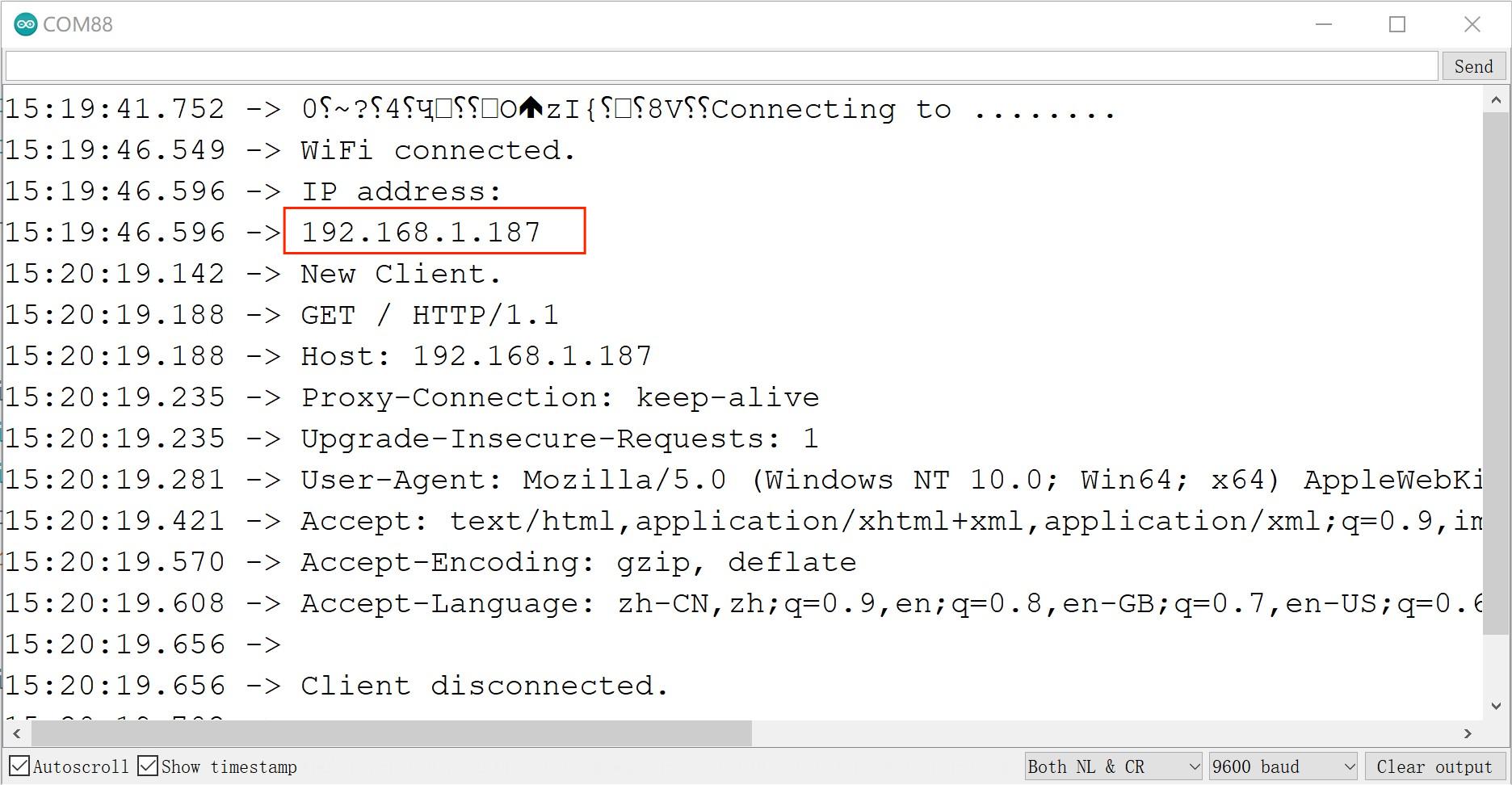

  • After verifying and unloading the code, the new client build-up, copy the IP address.

MaESP ESP8266_led connect WiFi.jpg

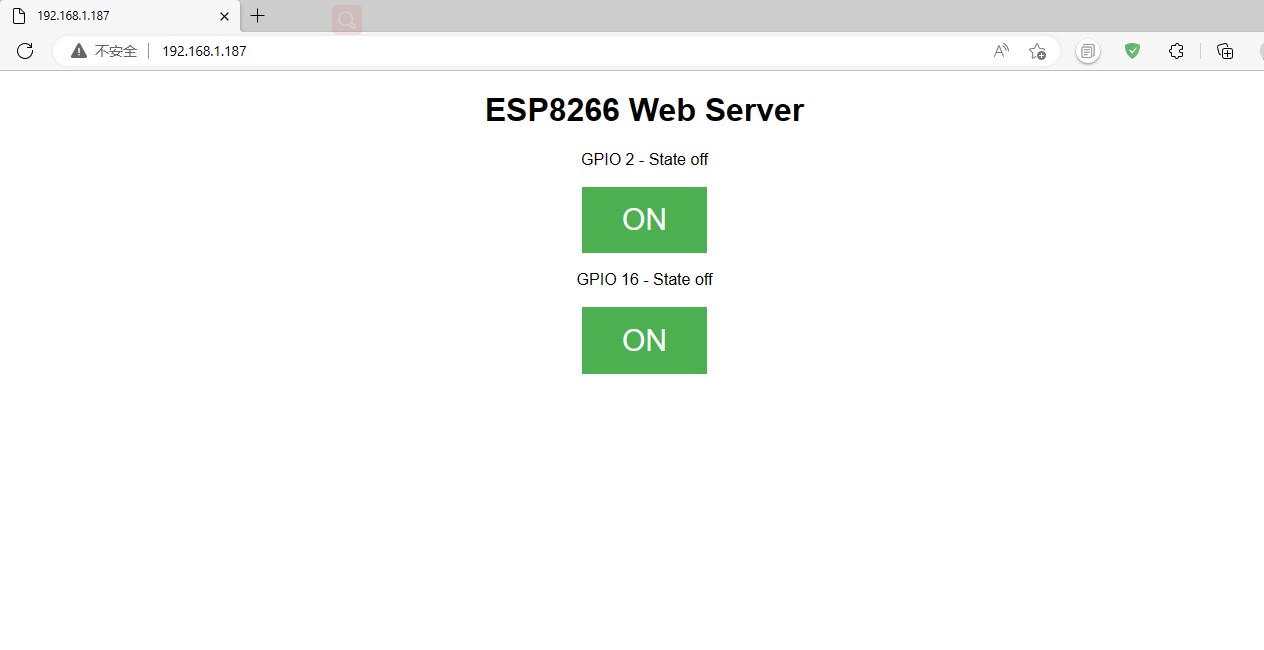

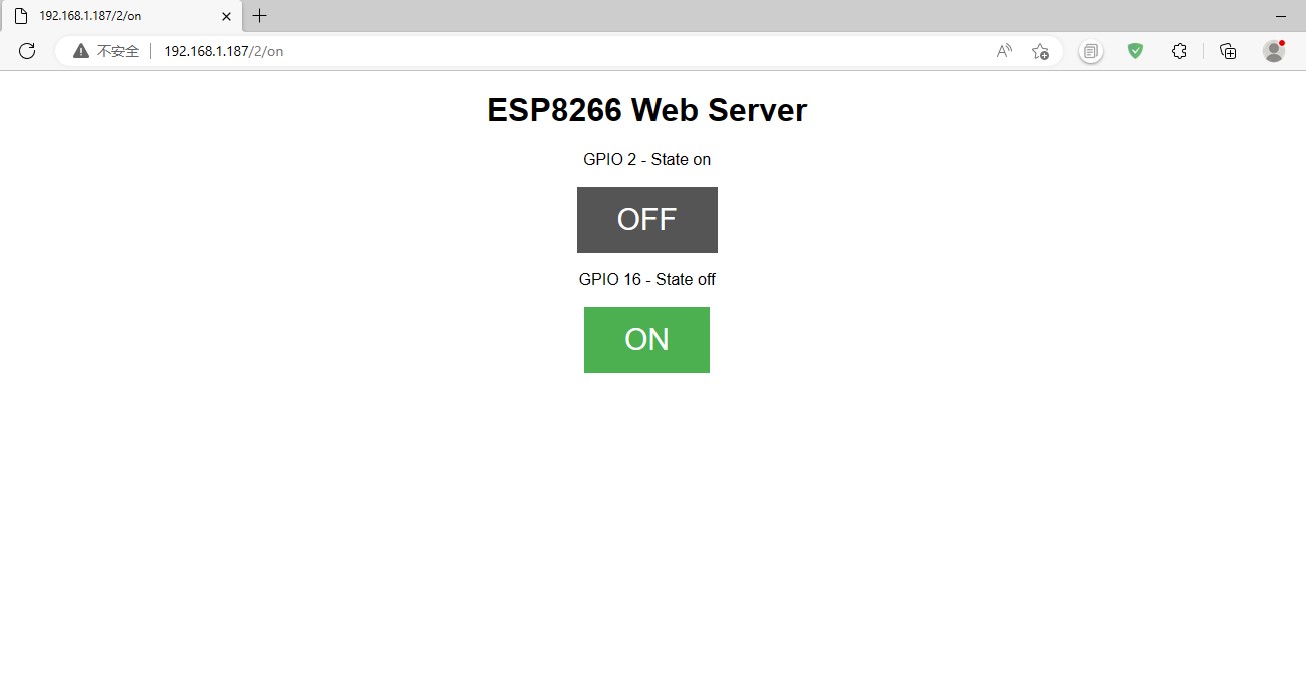

  • Open the browser and enter the IP address. You can see the page as follows.

MaESP ESP8266_led

  • Users can now turn the led on and off by clicking on/off.

MaESP ESP8266_led

MaESP ESP8266_show.jpg

Project_3: NTP Demo

NTP(Network time protocol), which is a protocol used to synchronize computer time. It allows a computer to synchronize its servers or clock sources (such as quartz clocks, GPS, etc.). This demo can display the real-time time on the screen.

  • Open the GitHub. Click to download the MaESP ESP32 Arduino OLED in the example file.

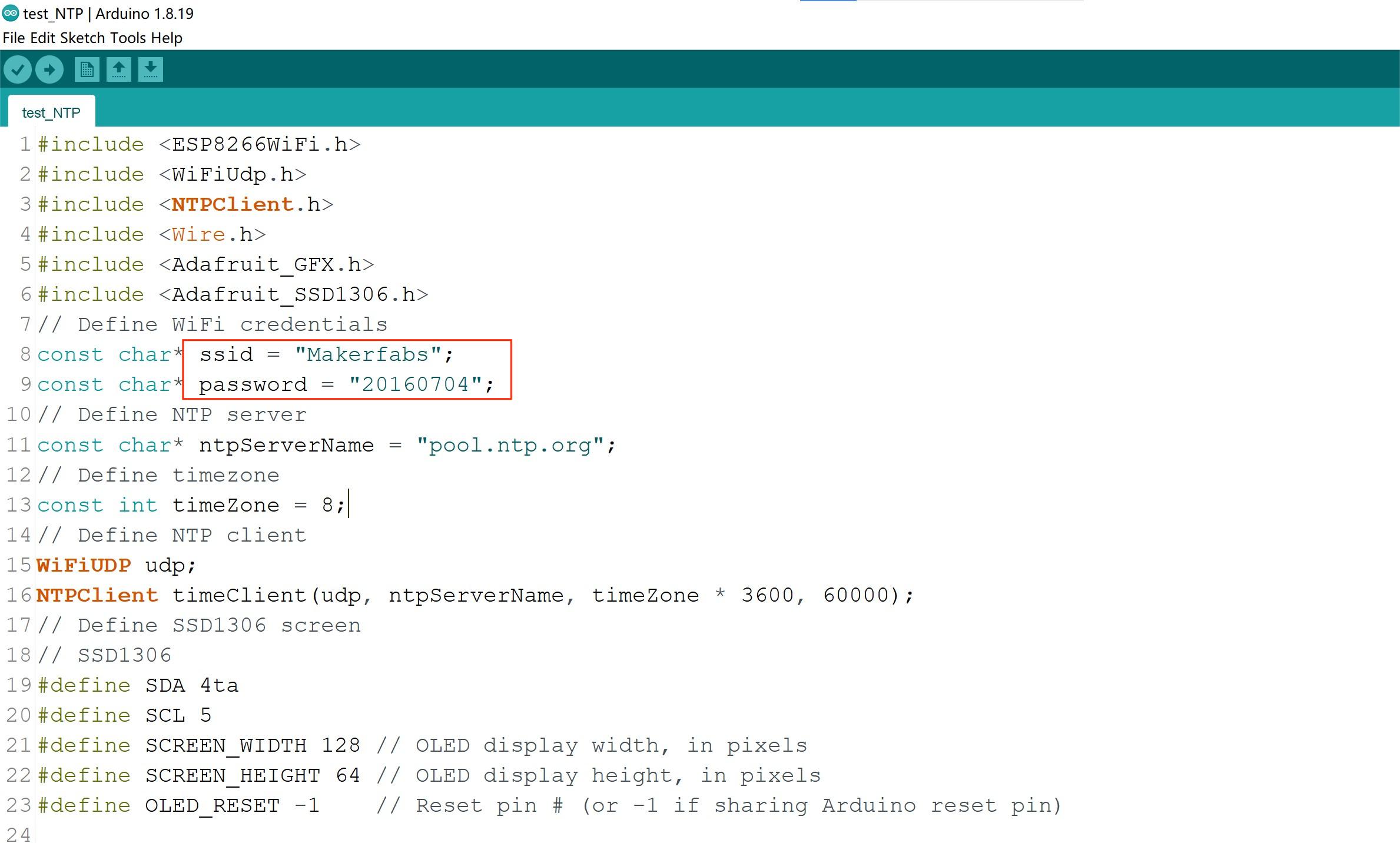

  • Open the file and modify the 'SSID' and 'PASSWORD' to local WIF and password:

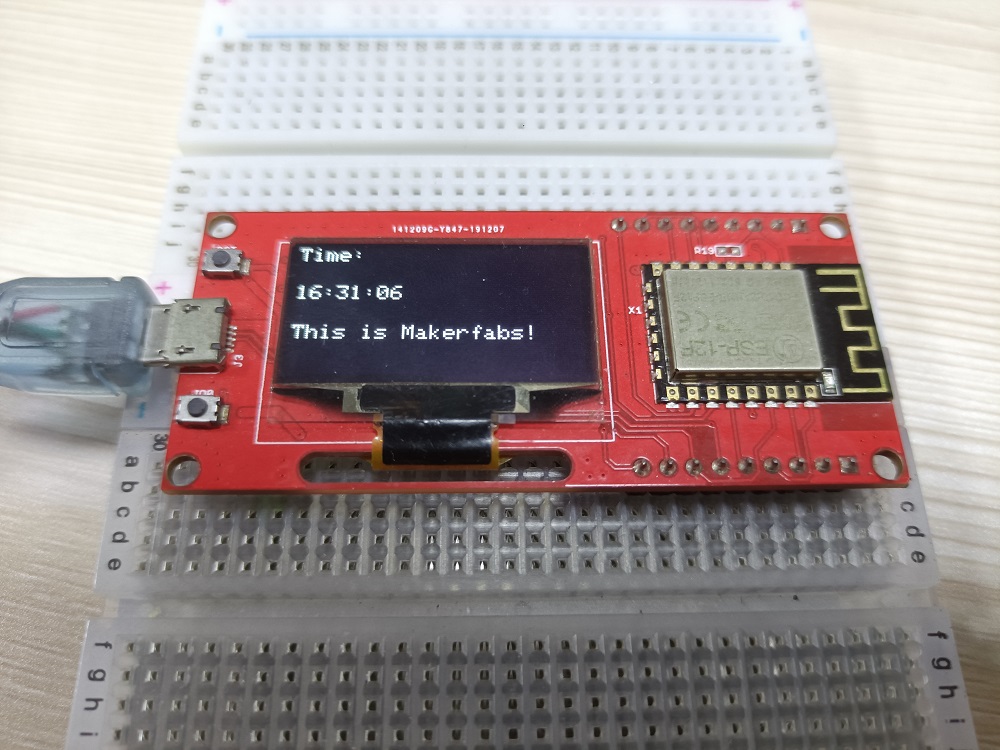

  • Verify and upload the sketch., show the demo as follows.

MaESP ESP8266 NTPshow.jpg
