Sunton ESP32-S3 4.3 inch 800*400 IPS with Touch

Introduction

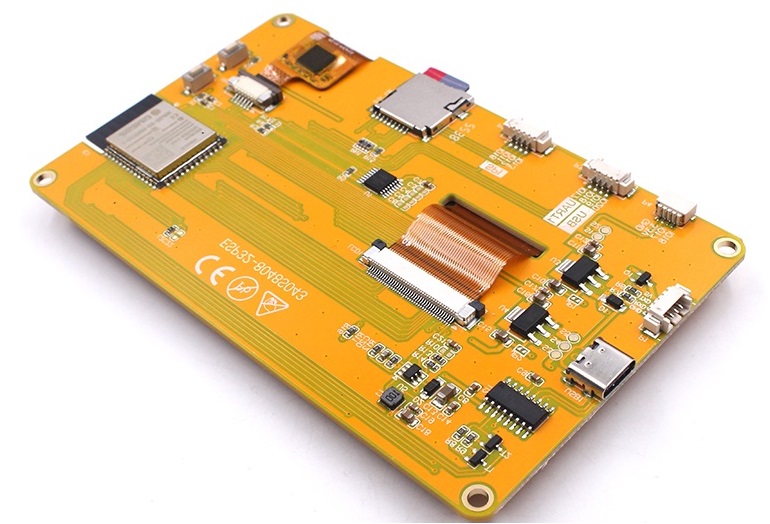

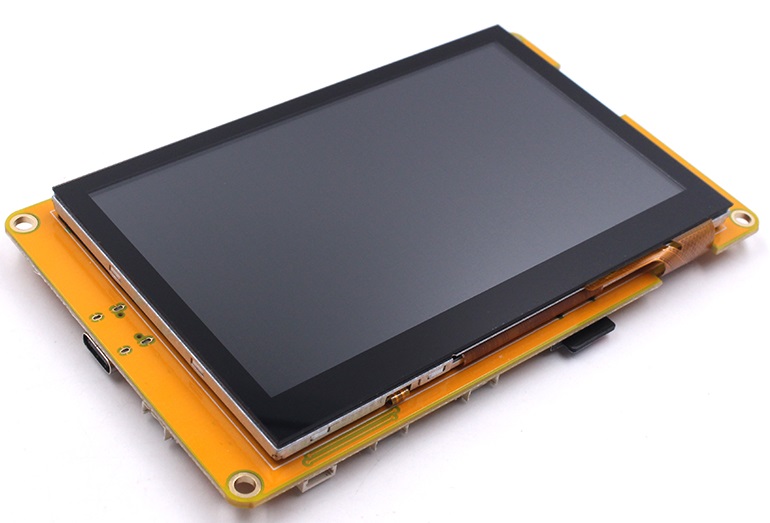

This Sunton ESP32-S3 4.3” IPS provides a cheap solution for ESP32 S3 display, in intends for easy/ quick applications. It is based on the latest Dual Core CPU ESP32-S3(8M PSRM,16M Flash), the display is IPS RGB with resolution 800 * 480, and Capacitive Touch. It can be use in a number of IoT situations, which has 800 * 480 HD resolution to make you acquire the Excellent visual experience.

Model:SUTESPS343

Feature

  • ESP32-S3-WROOM Controller

  • Working voltage 4.75-5.25V

  • Resolution: 800*480 IPS

  • Dimension: 4.3 inch

  • Capacitive Touch

  • Onboard SD card socket

  • Extended IO for applications' usage

  • Onboard Photosensitive resistor (for auto Backlight adjustment)

  • Onboard RGB LED

Usage

Software setup

To ensure the running environment, the same version is recommended.

All the projects are based on ESP32-S3 development board.

1.Install the Arduino IDE V1.8.19.

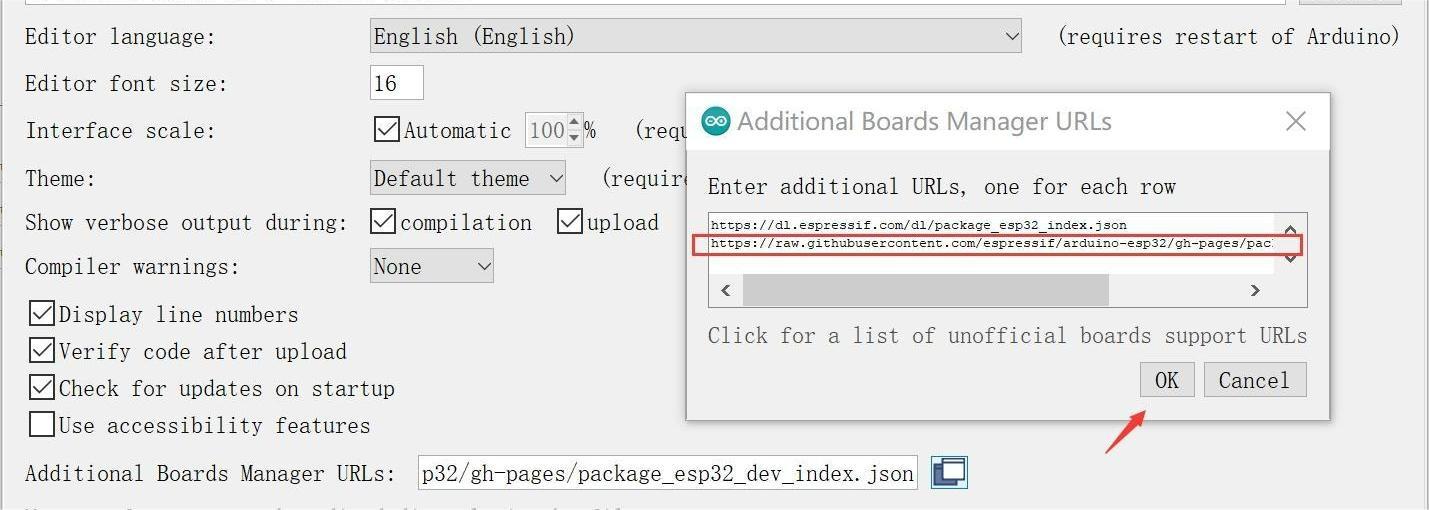

2.Install the ESP32 boards supporting V2.0.5

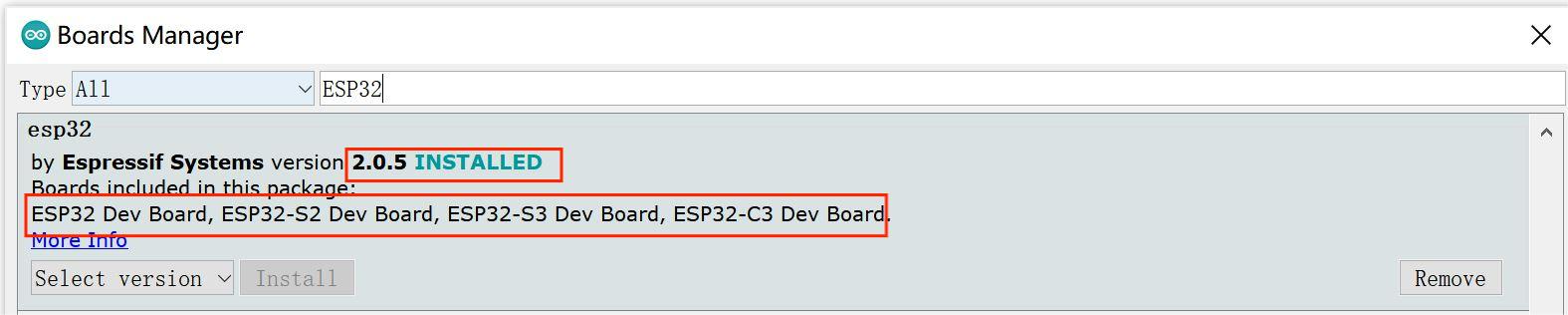

3.Click “Tools>Board>Boards Manager” to search for and install the ESP32 library:

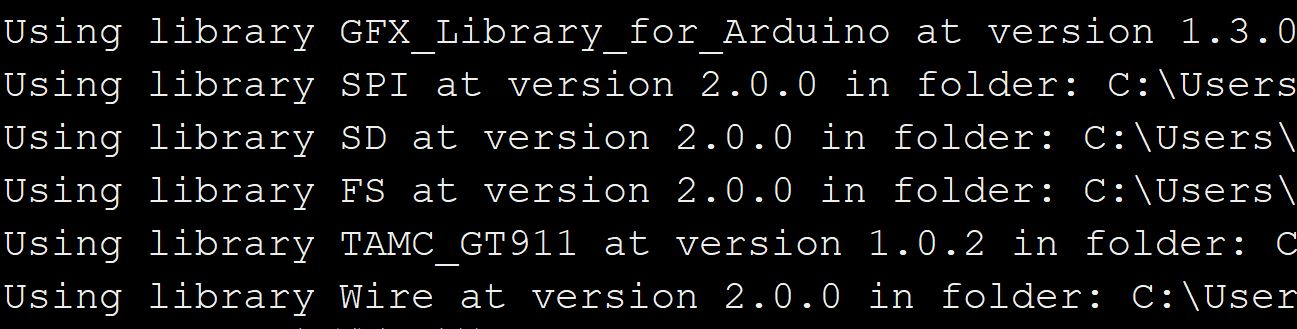

  • When you upload the code fail, which is maybe about the library version, you can use the library version as follows.

SuntonESP32S3IPSwithTouch Version.JPG

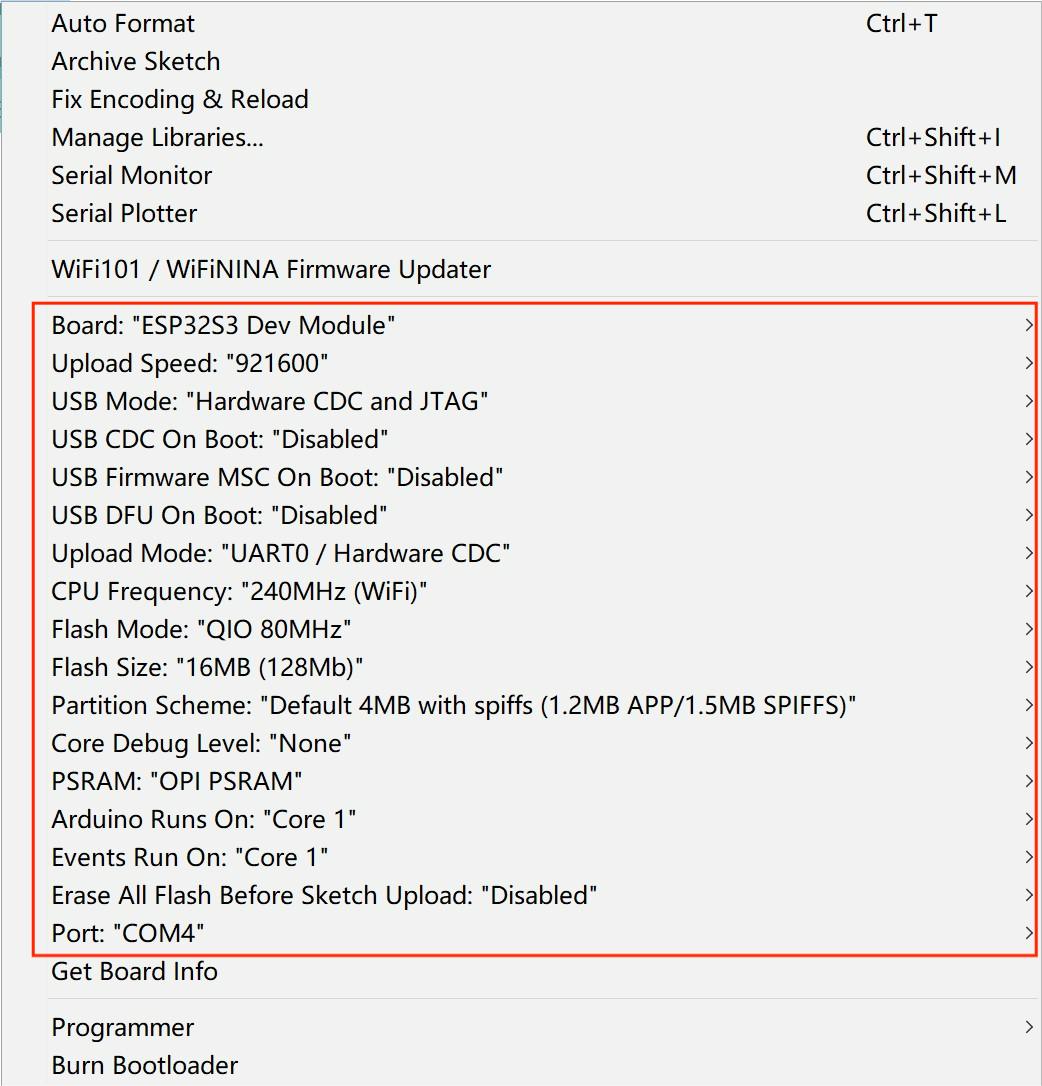

4.Select and set the parameter in the Tools menu, as the picture:

SuntonESP32S3IPSwithTouch config.jpg

Note: Different PC has different Serial COM number.

Screen display

1.You can get the source code from here.

2.Unzip the file and open it.

3.Verify and upload it.


4.After uploading, the screen will be display as follows

VID_20221028_153429 00_00_0000_00_30~2.gif

Lvgl demo

1.You can get the source code from here.

2.Unzip the file and open it.

3.Verify and upload it.

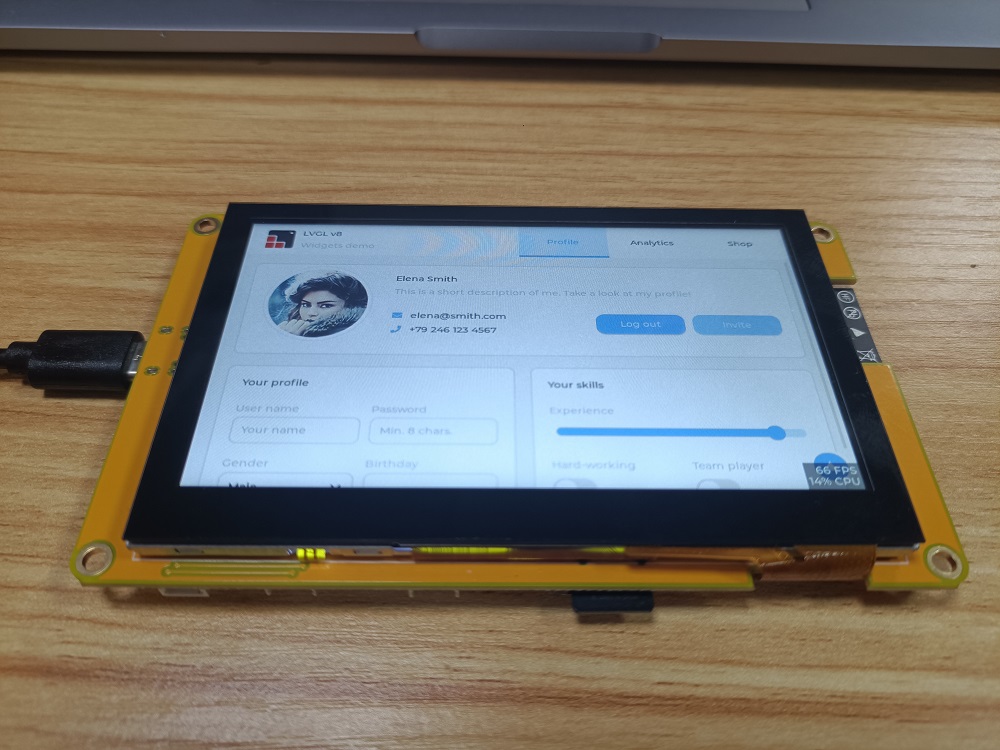

4.After uploading, the screen will be displayed as follows

Lvgl demo.jpg

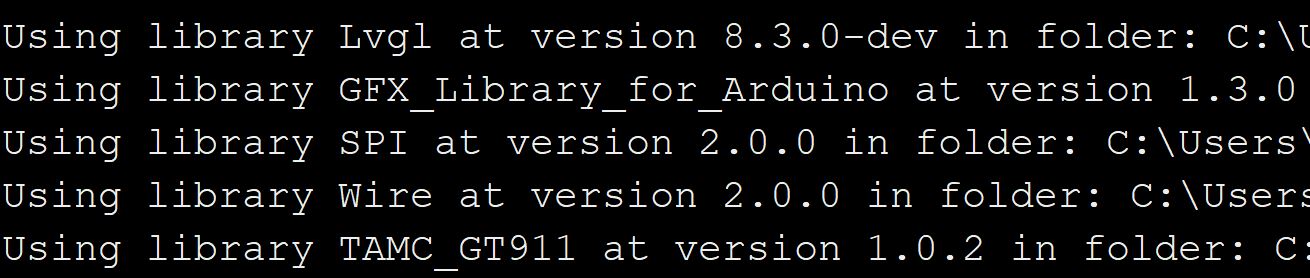

  • When you upload the code fail, which is maybe about the library version, you can use the library version as follows.

SuntonESP32S3IPSwithTouch Version2.JPG

FAQ

You can list your question here or contact techsupport@makerfabs.com for technology support. Detailed descriptions of your question will be helped to solve your question.
