STM32 LoRa module

1.Introduction

The STM32 LoRa module is a high-performance, ultra-low-power, multi-band wireless communication module based on the STM32L476RGT6 32-bit low-power MCU and Semtech's latest-generation LR1121 multi-band LoRa transceiver. It supports Sub-GHz, 2.4GHz, and S-band (1.9–2.1GHz) communication, meeting the diverse requirements of IoT applications for long-range, low-power, and global frequency compatibility.

2.Features

  • Controller: STM32L476RGT6(Cortex-M4, 1MB Flash, 128KB SRAM).
  • RF Transceiver: Semtech LR1121.
  • Support Protocols: LoRa, (G)FSK, Sigfox, LR-FHSS.
  • Support Frequency Bands: 150–960 MHz, 1.9-2.1GHz Satellite band and 2.4GHz ISM bands.
  • Interfaces: SPI, UART, I2C, GPIO, ADC

3.Usage

Before getting started, the LR1121 must be programmed with firmware. Depending on the application, two types of firmware are available: LoRa mode and LoRaWAN mode.

LR1121 Firmware Flashing

  • Download the LR1121 firware from github.

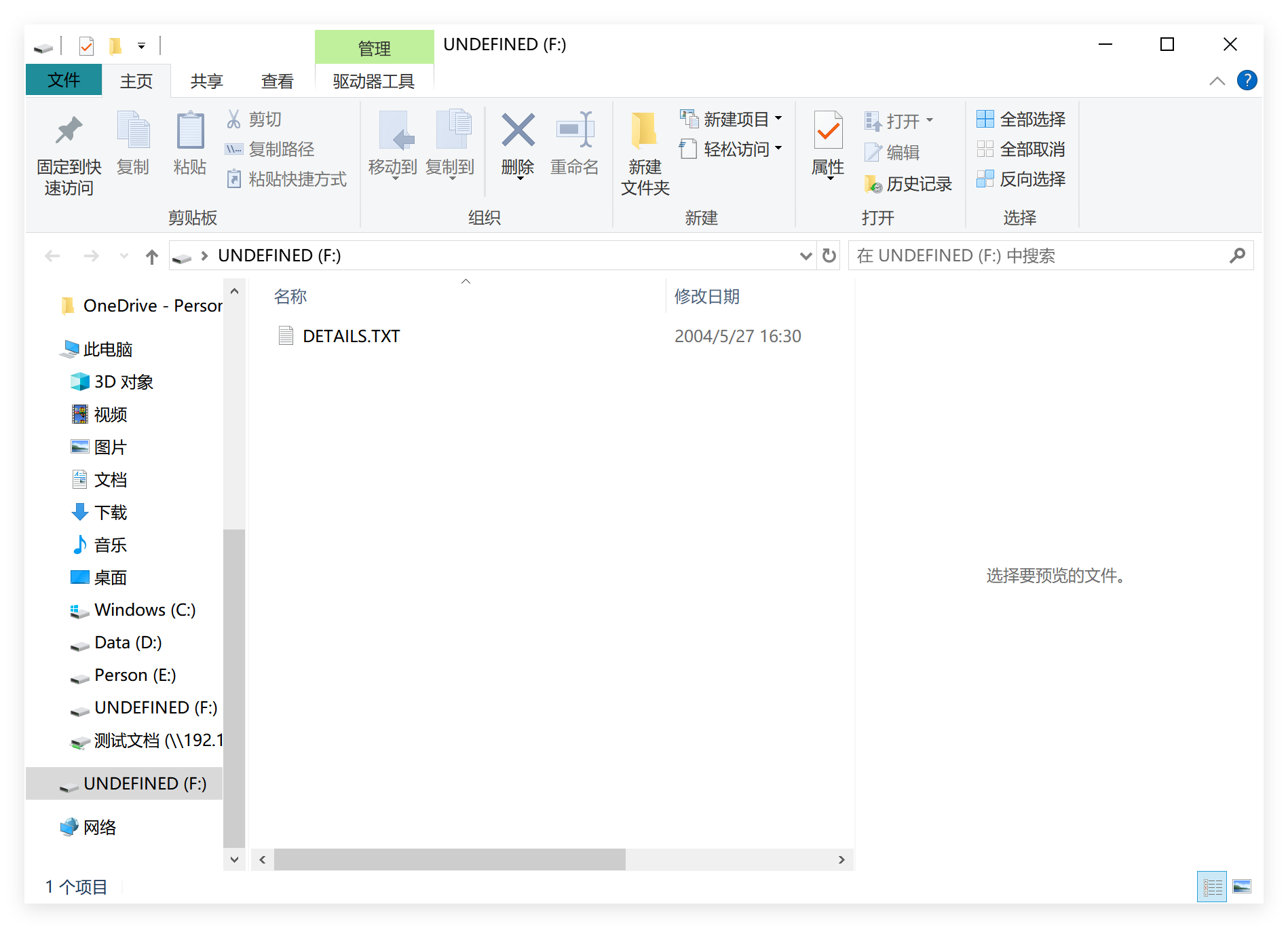

  • Use Type-C USB cable to connect the board and PC, a removable drive will automatically show up.

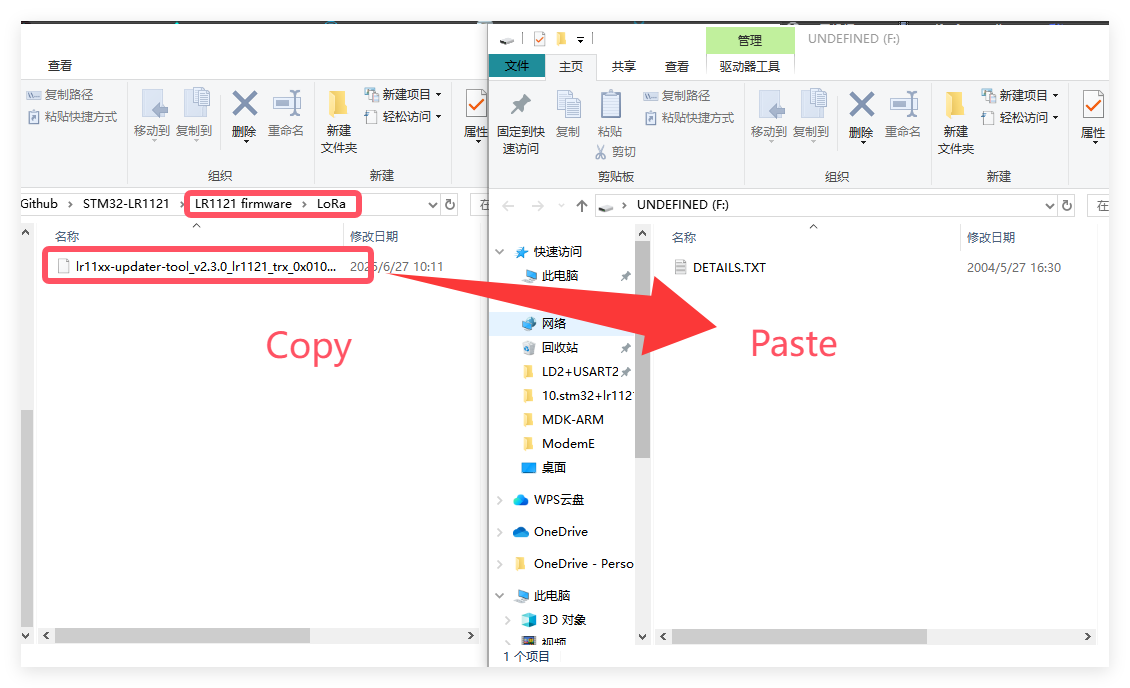

  • If you want to work in LoRa mode, copy the firmware to the drive. Once the drive automatically reappears, the flashing process is complete.

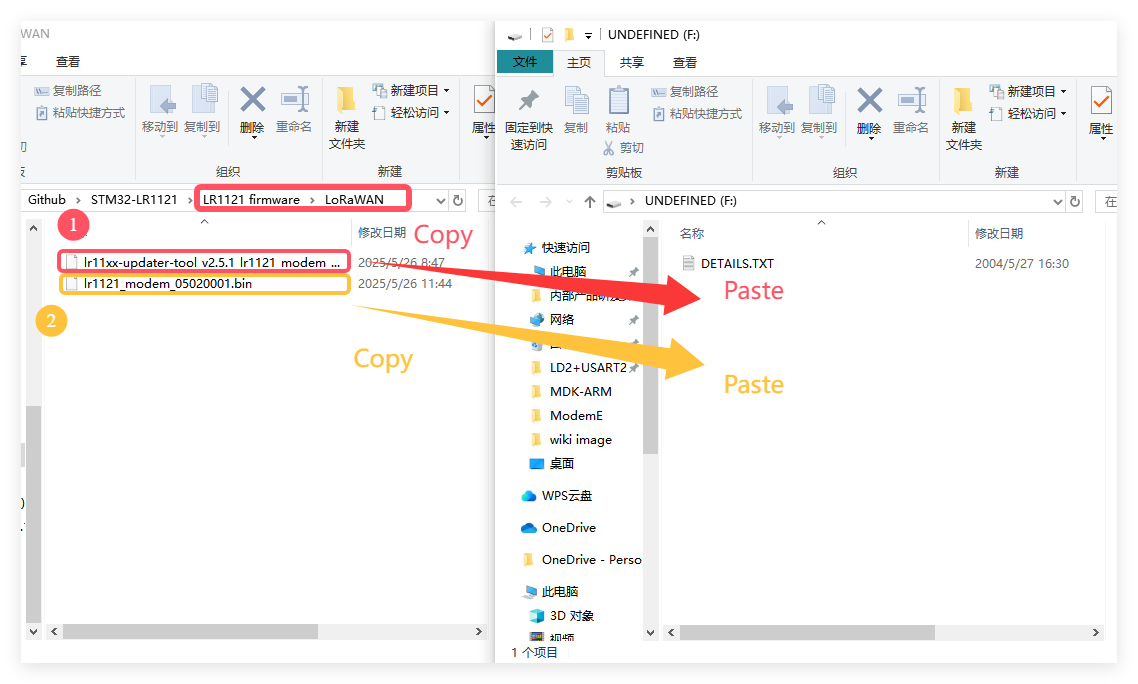

  • If you want to work in LoRaWAN mode, First copy the "lr11xx-updater-tool_v2.5.1_lr1121_modem_v2.0.1.bin" to the drive, waitting the drive reappears, then copy the "lr1121_modem_05020001.bin" to the drive to complete the firmware flashing process.


3.1 LoRa

The LoRa example is a basic point-to-point communication demo. It requires two boards, one as the transmitter and the other as the receiver. The transmitter continuously sends an incrementing number, which is received and displayed by the receiver.

  • Download the LoRa code from github, The default mode is transmitter mode.

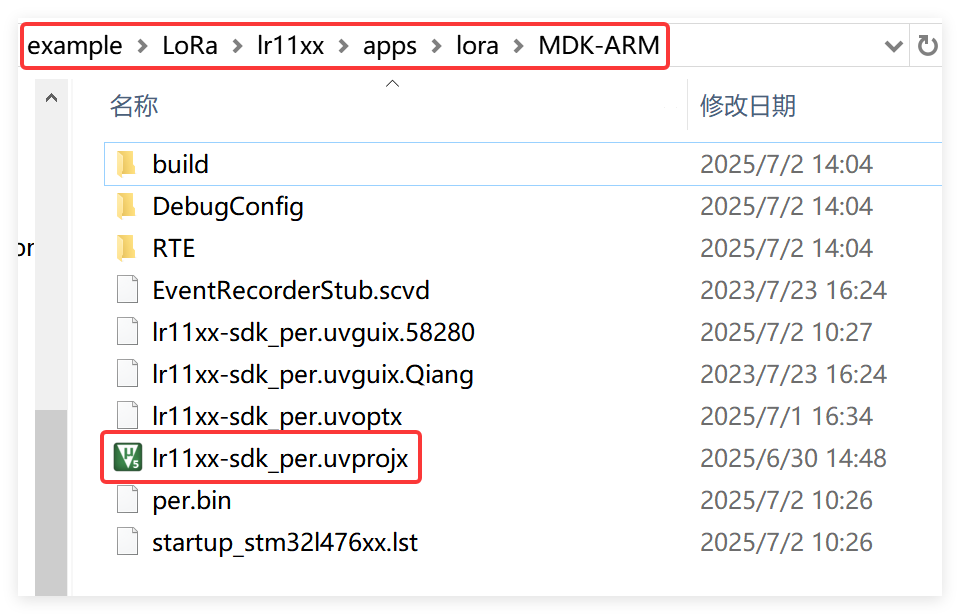

  • Open the project by keil.


  • Use Type-C USB cable to connect the board and PC.

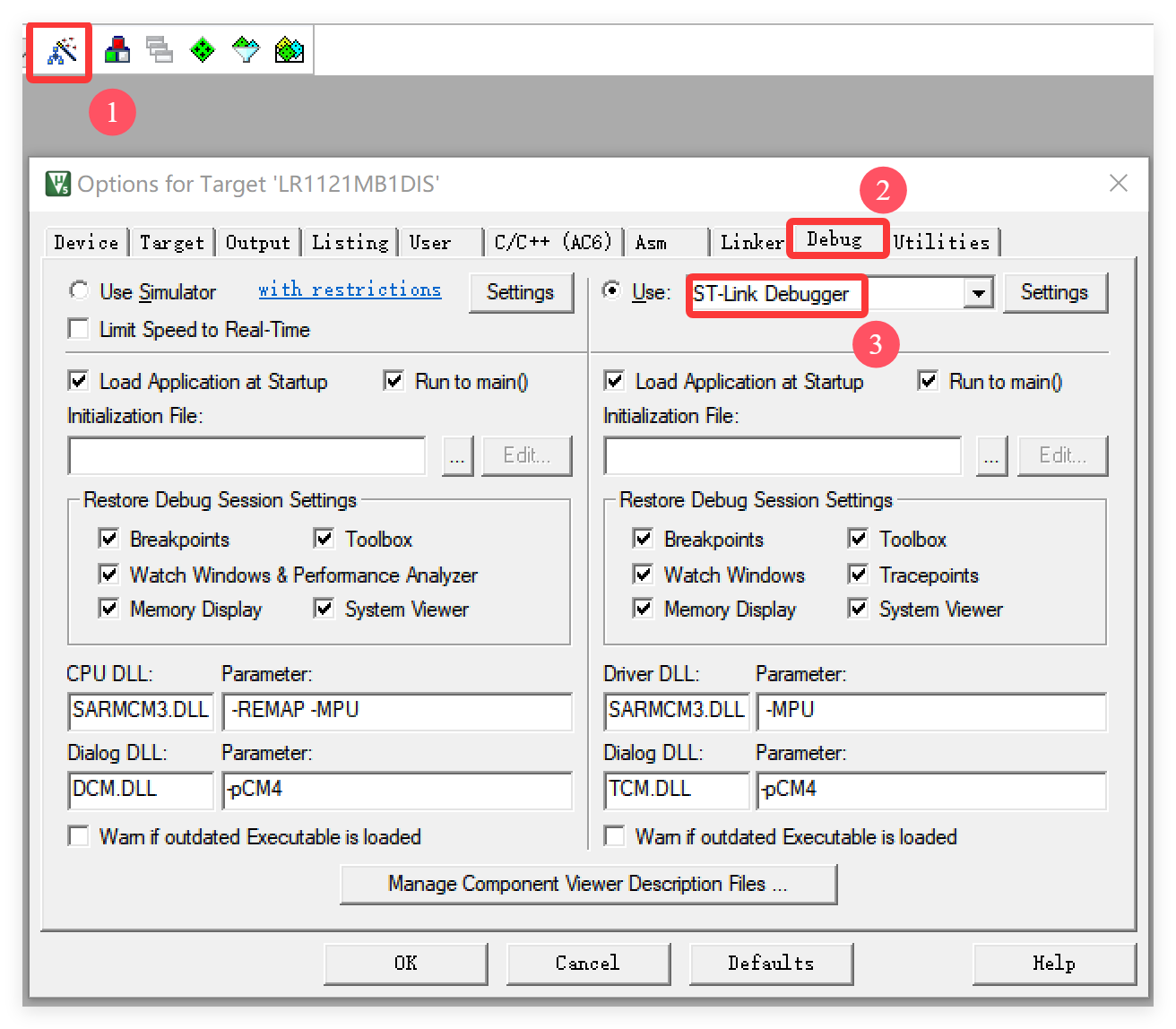

  • Click "Options for Target..." and select the "ST-Link Debugger"

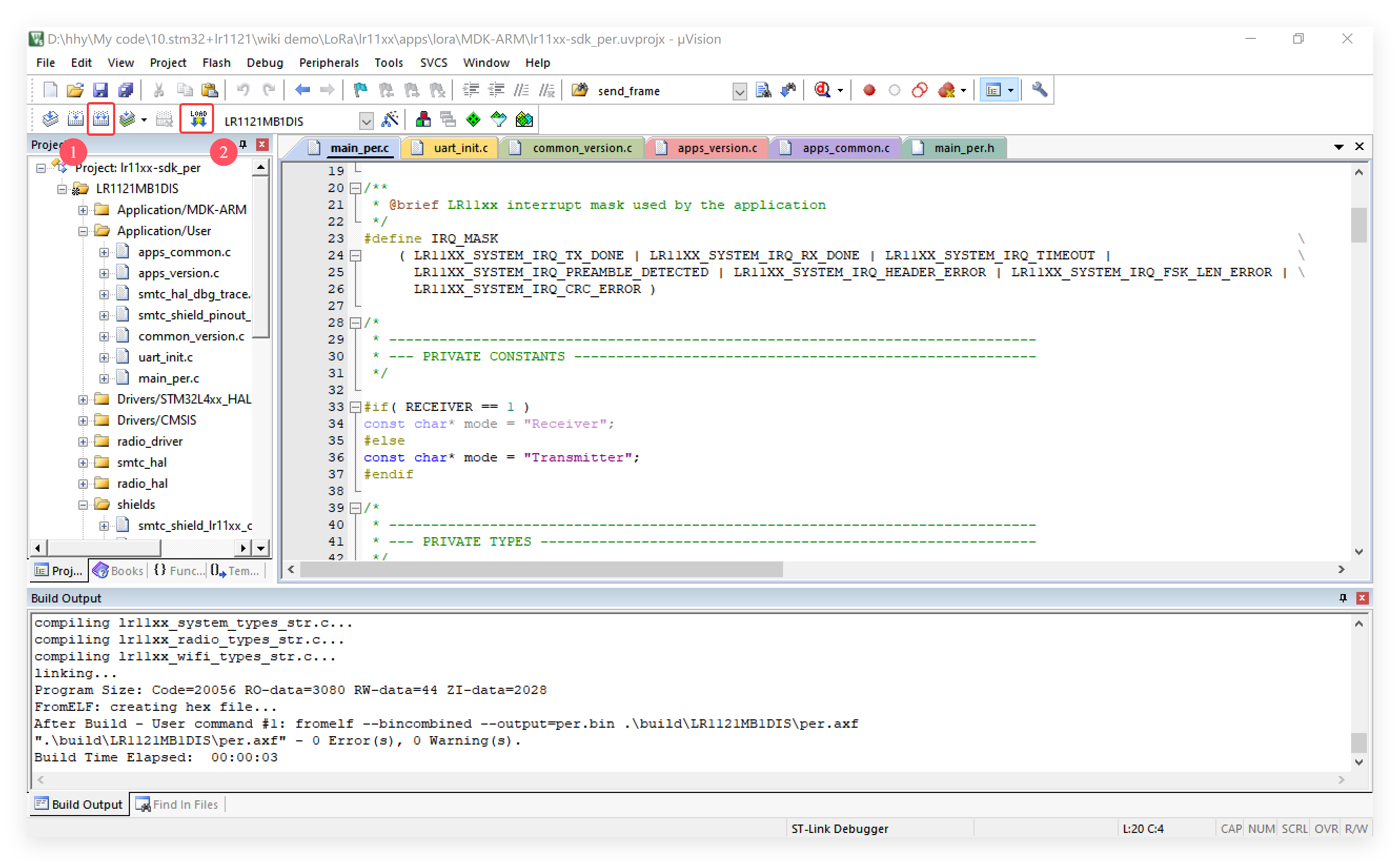

  • Click "Rebuild" first and then click "Download".

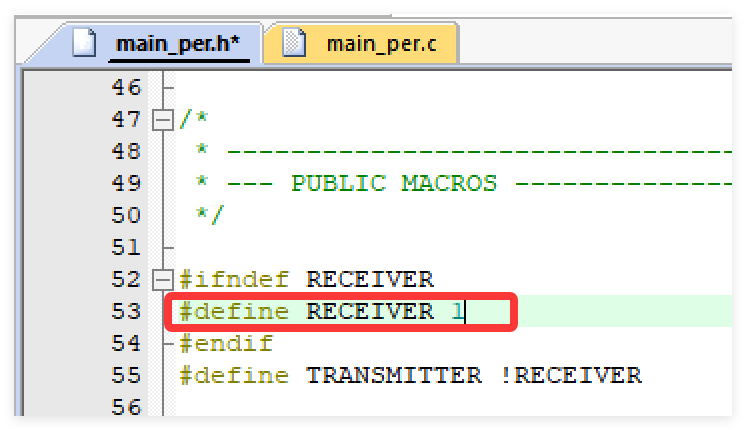

  • To switch to receiver mode, change the definition of RECEIVER to 1 in main_per.h. After that, prepare a second board and flash it using the same procedure.

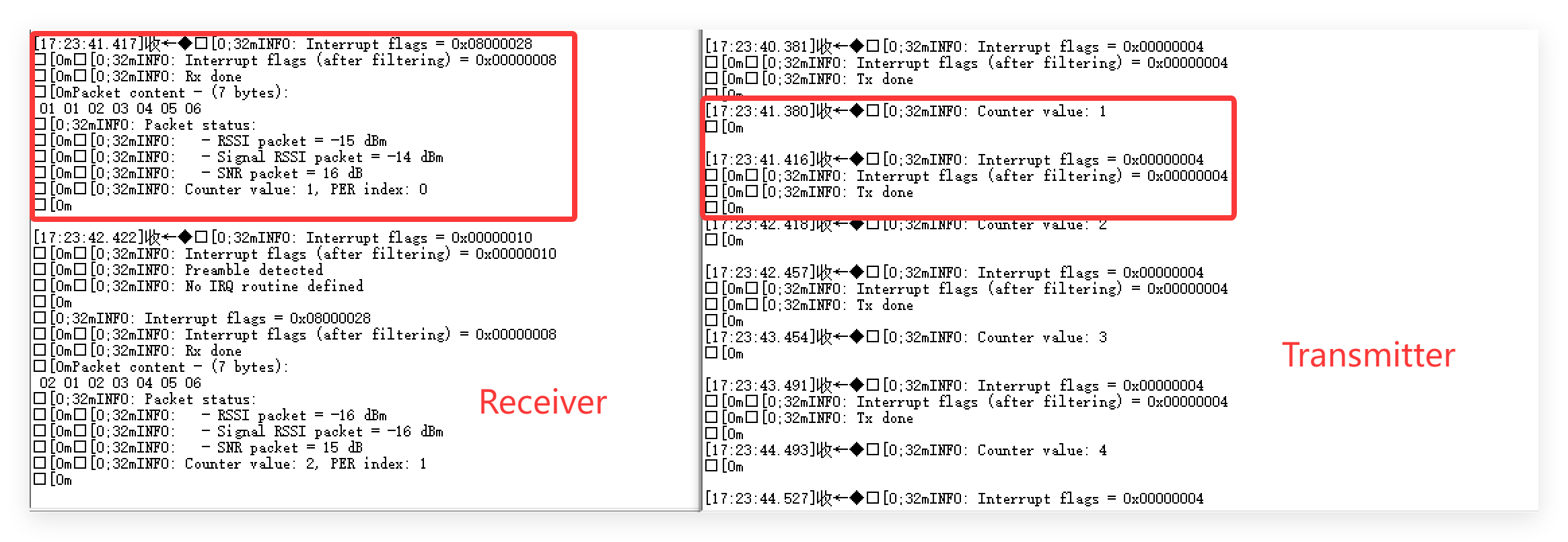

Result

lora ok.png

3.2 LoRaWAN

The LoRaWAN example reads data from a DHT11 and transmits the temperature and humidity to The Things Network (TTN) via LoRaWAN.

3.2.1 Flashing the code

Wiring schematic：

Board DHT11
PC10 DATA
3V3 VCC
GND GND

  • Wire the DHT11 to your board as schematic above.

  • Download the LoRaWAN code from github.

  • Open the project by keil.

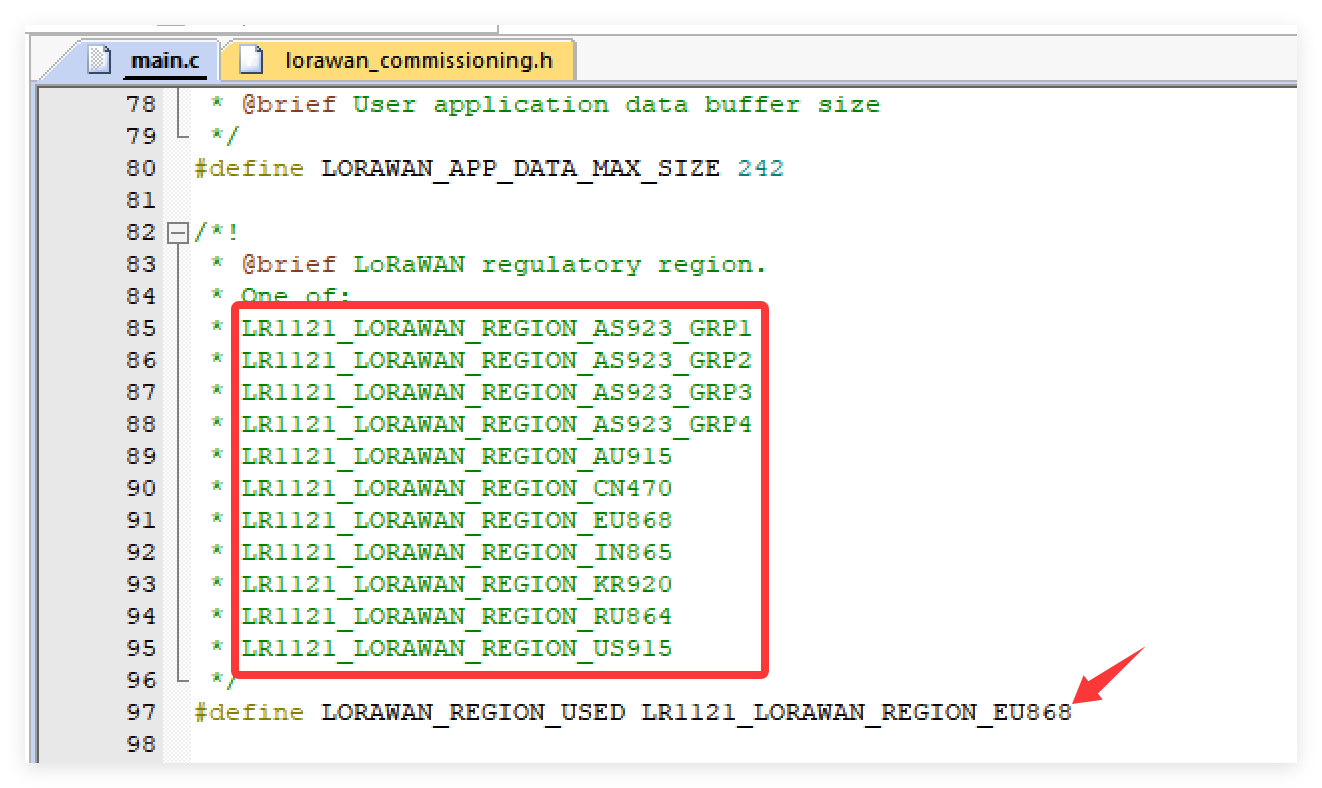

  • Set "LORAWAN_REGION_USED" according to your regional frequency band, take 868 for example.

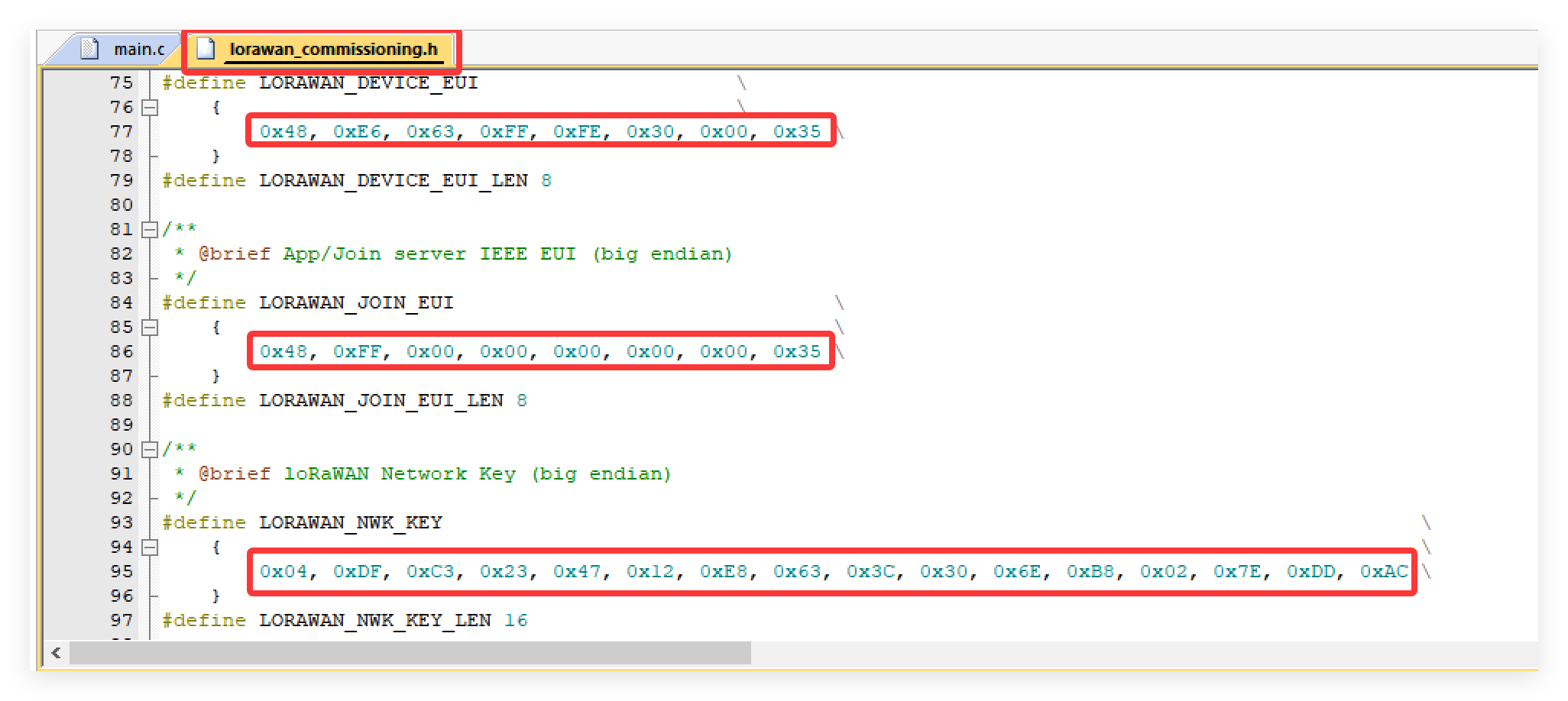

  • Modify the device credentials (DevEUI, JoinEUI, and AppKey) in lorawan_commissioning.h to match your own.


  • Use Type-C USB cable to connect the board and PC.

  • Click "Options for Target..." and select the "ST-Link Debugger"


  • Click "Rebuild" first and then click "Download".

3.2.2 TTN and ThingSpeak

TTN Configuration

  • Open The Things Network and register an account.

  • Select the correct region. 1、console.jpg 2、select 868915.jpg

  • Create new application. 3、create app.jpg

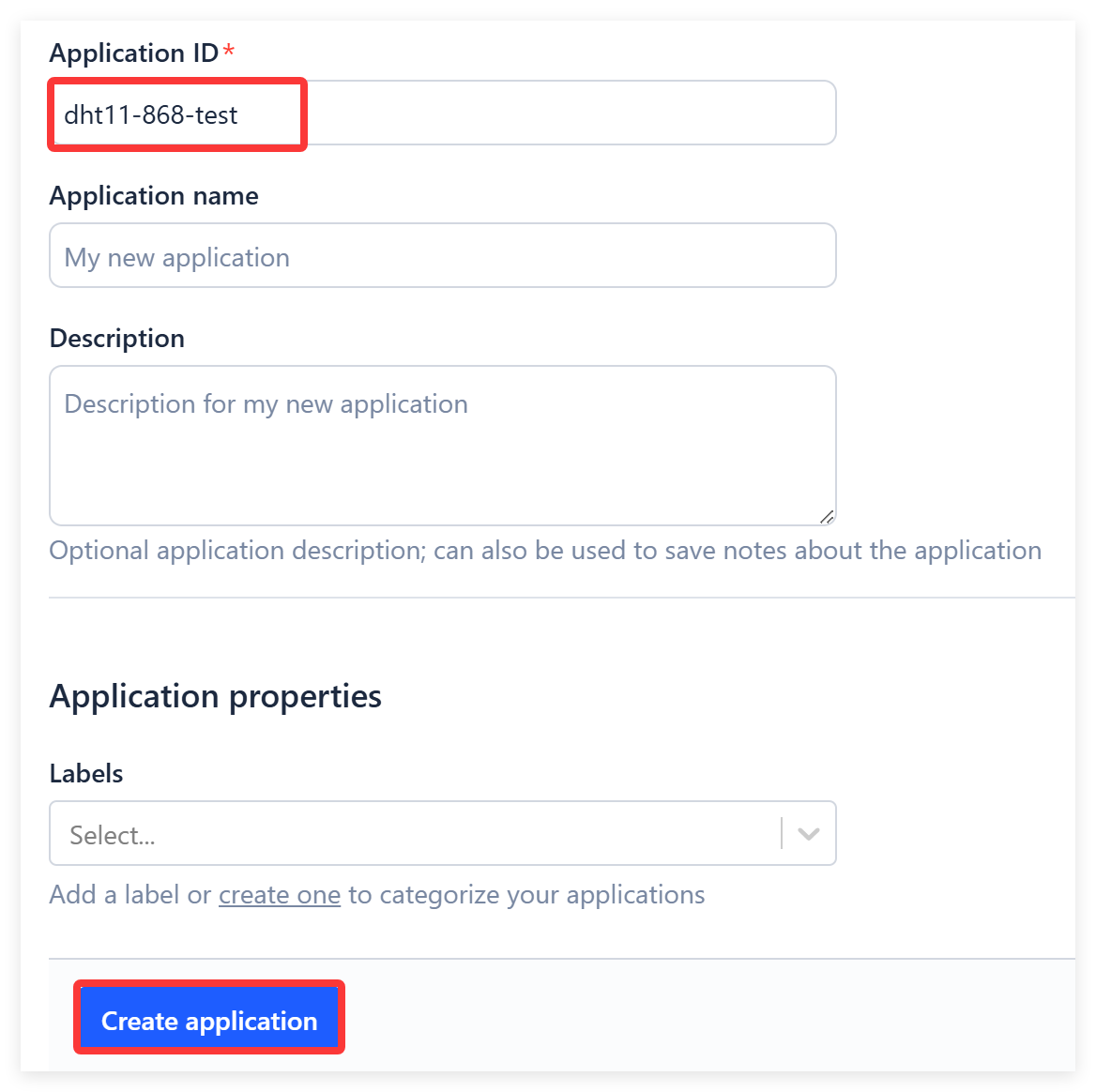

  • Enter your Application ID, and click "Create application" 10.png

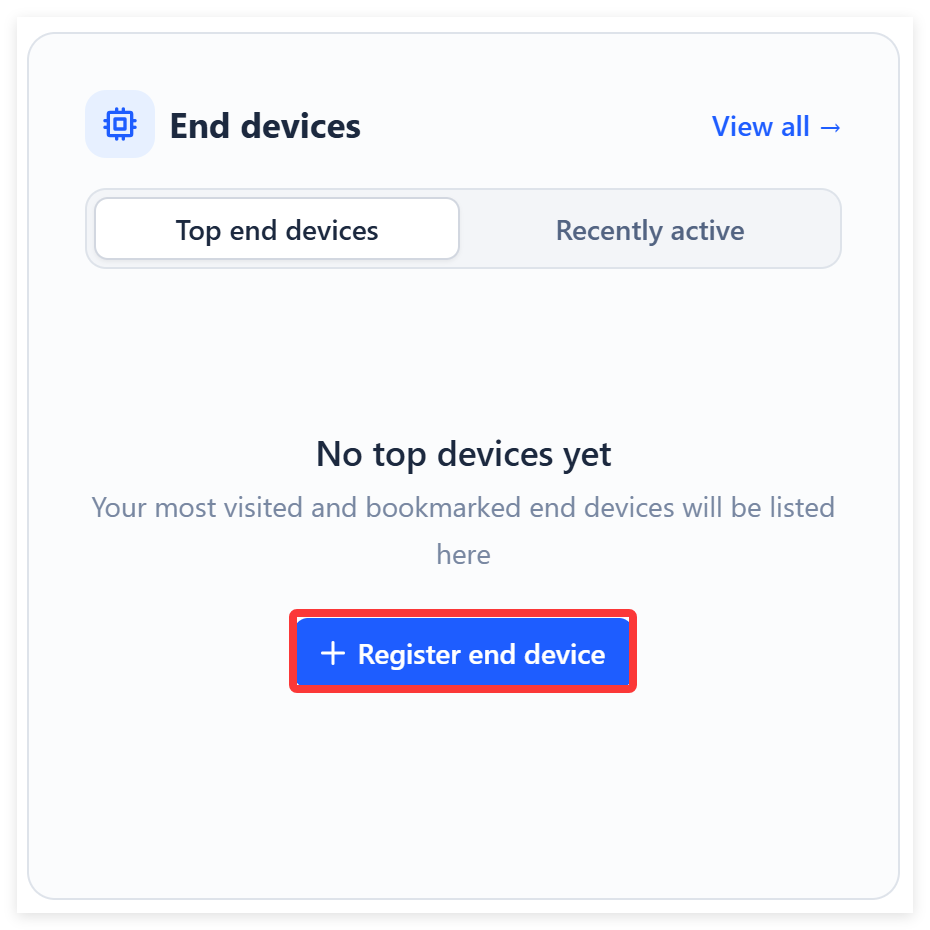

  • Click "+ Register end device" 11.png

  • Choose "Enter end device specifics manually"

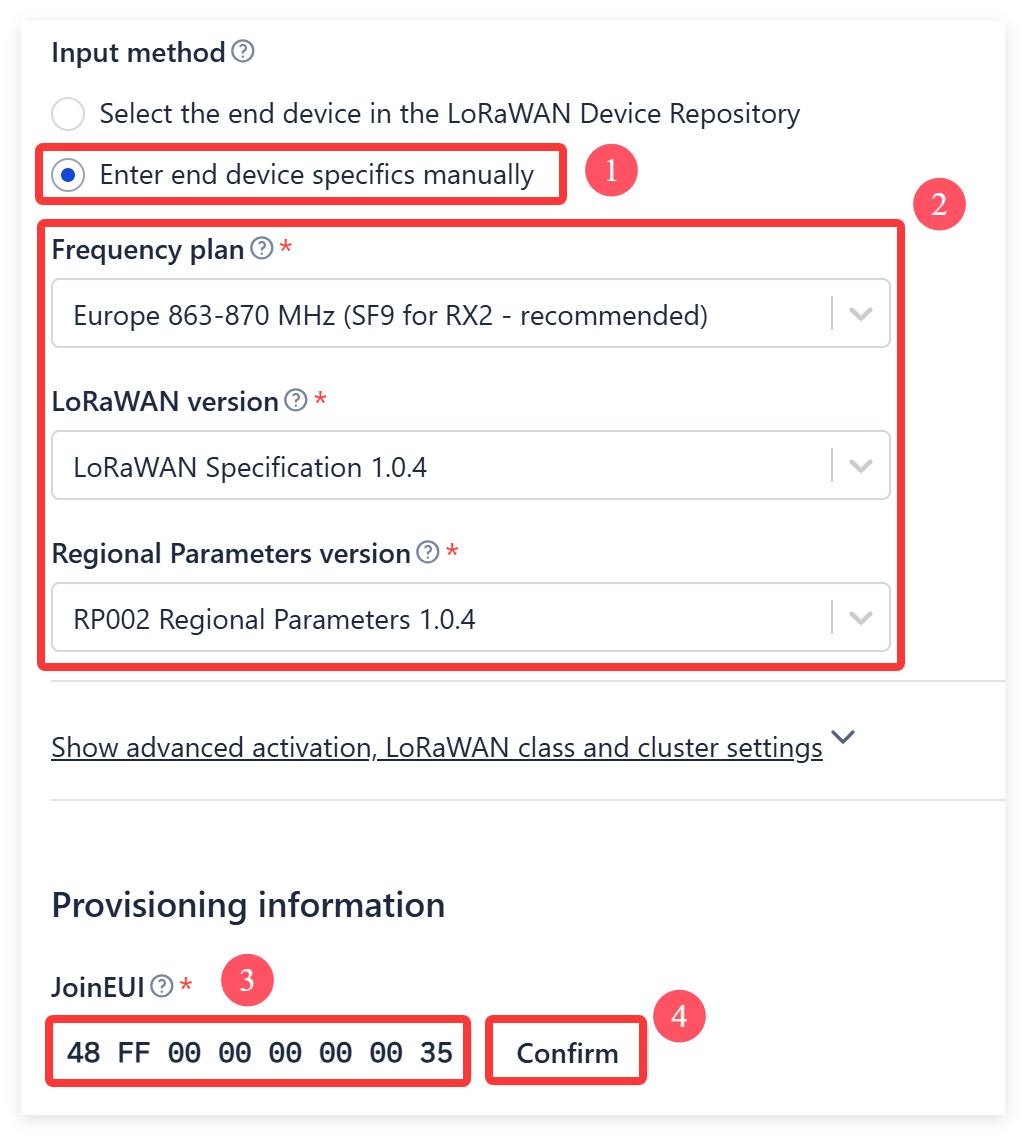

  • Select the three options as shown in the image below.(Take 868 for example)

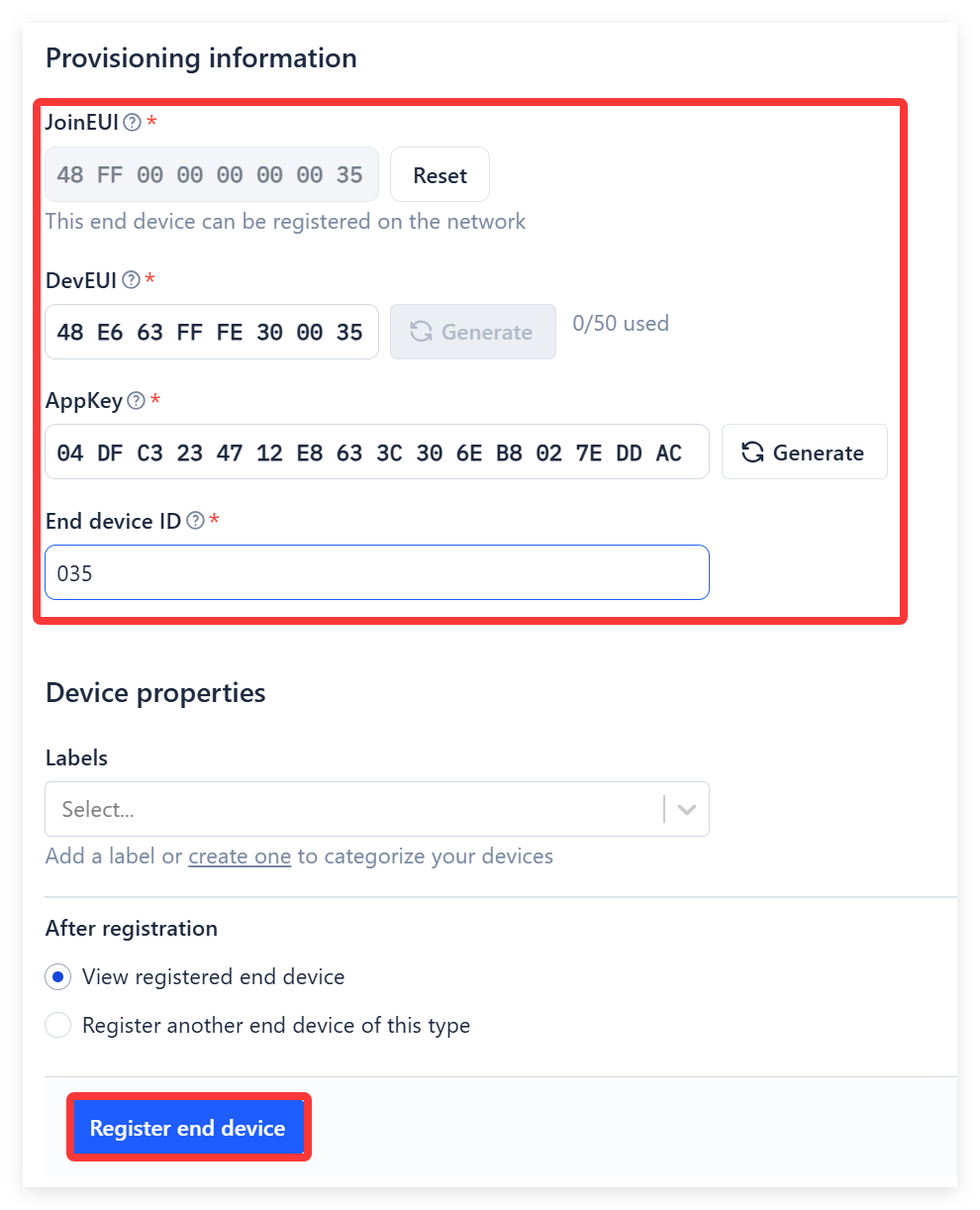

  • Enter you joinEUI, DevEUI, Appkey data.
CREDENTIALS <--> Provisioning information
LORAWAN_JOIN_EUI <--> JoinEUI
LORAWAN_DEVICE_EUI <--> DevEUI
LORAWAN_NWK_KEY <--> AppKey

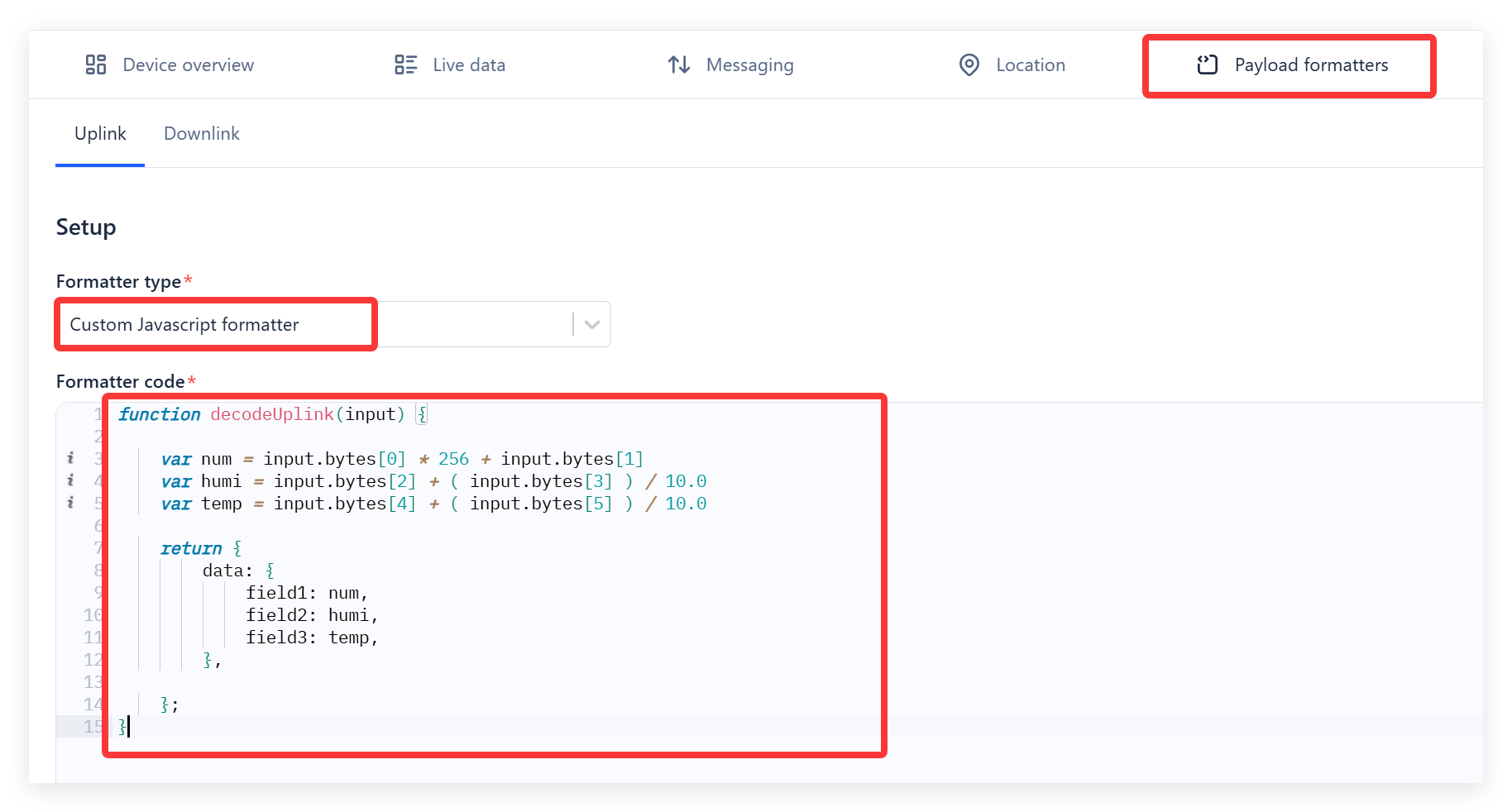

  • Click “Payload Formatters-->Uplink”.
  • Select “Custom JavaScript Formatters”.
  • Write JavaScript code to parse the binary data sent from the device.
function decodeUplink(input) {

    var num = input.bytes[0] * 256 + input.bytes[1]
    var humi = input.bytes[2] + ( input.bytes[3] ) / 10.0
    var temp = input.bytes[4] + ( input.bytes[5] ) / 10.0

    return {
        data: {
            field1: num,
            field2: humi,
            field3: temp,
        },

    };
}


  • Finally click "Save changes".

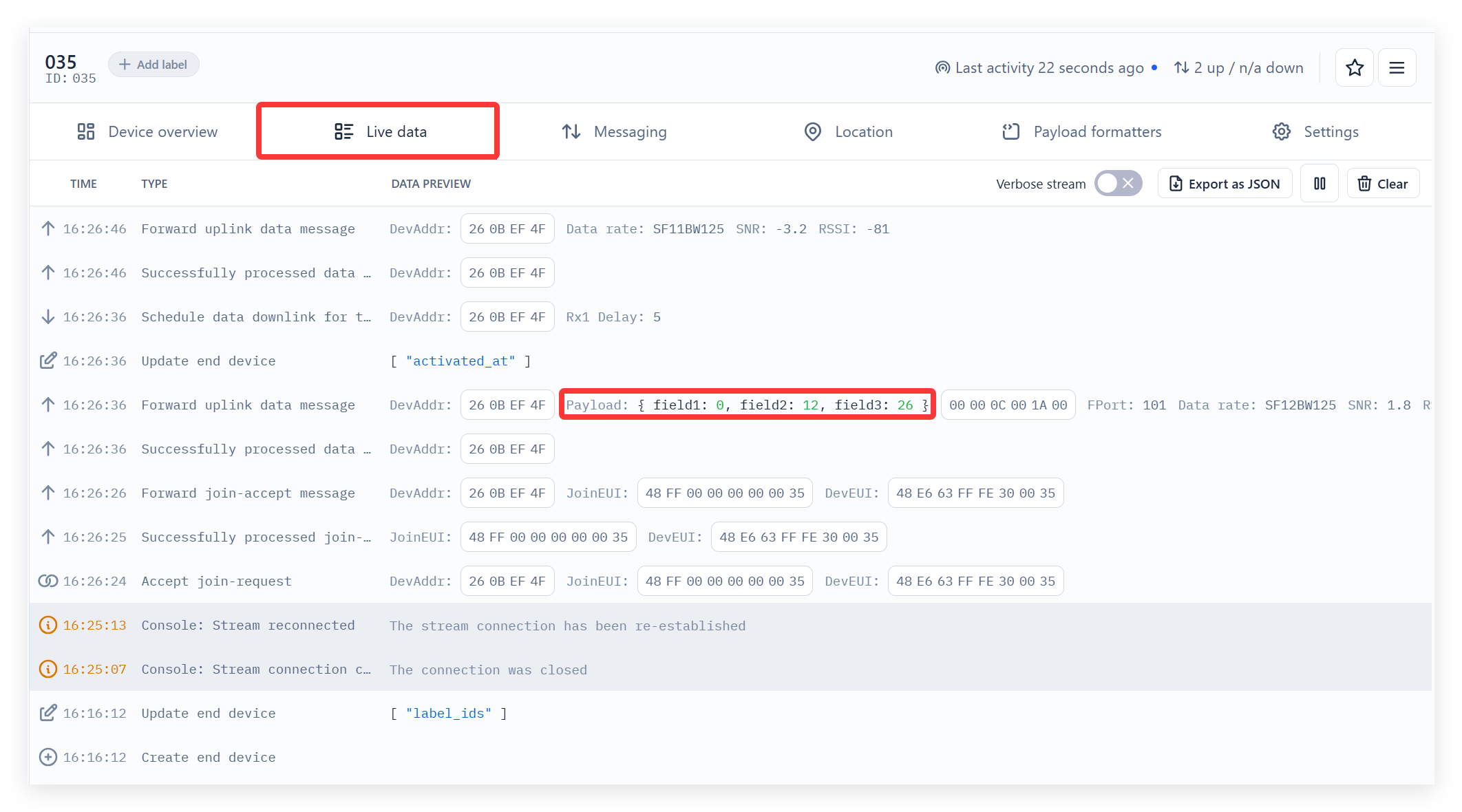

  • Press "RES" button and you will see the data successfully upload to TTN.

ttn ok.png

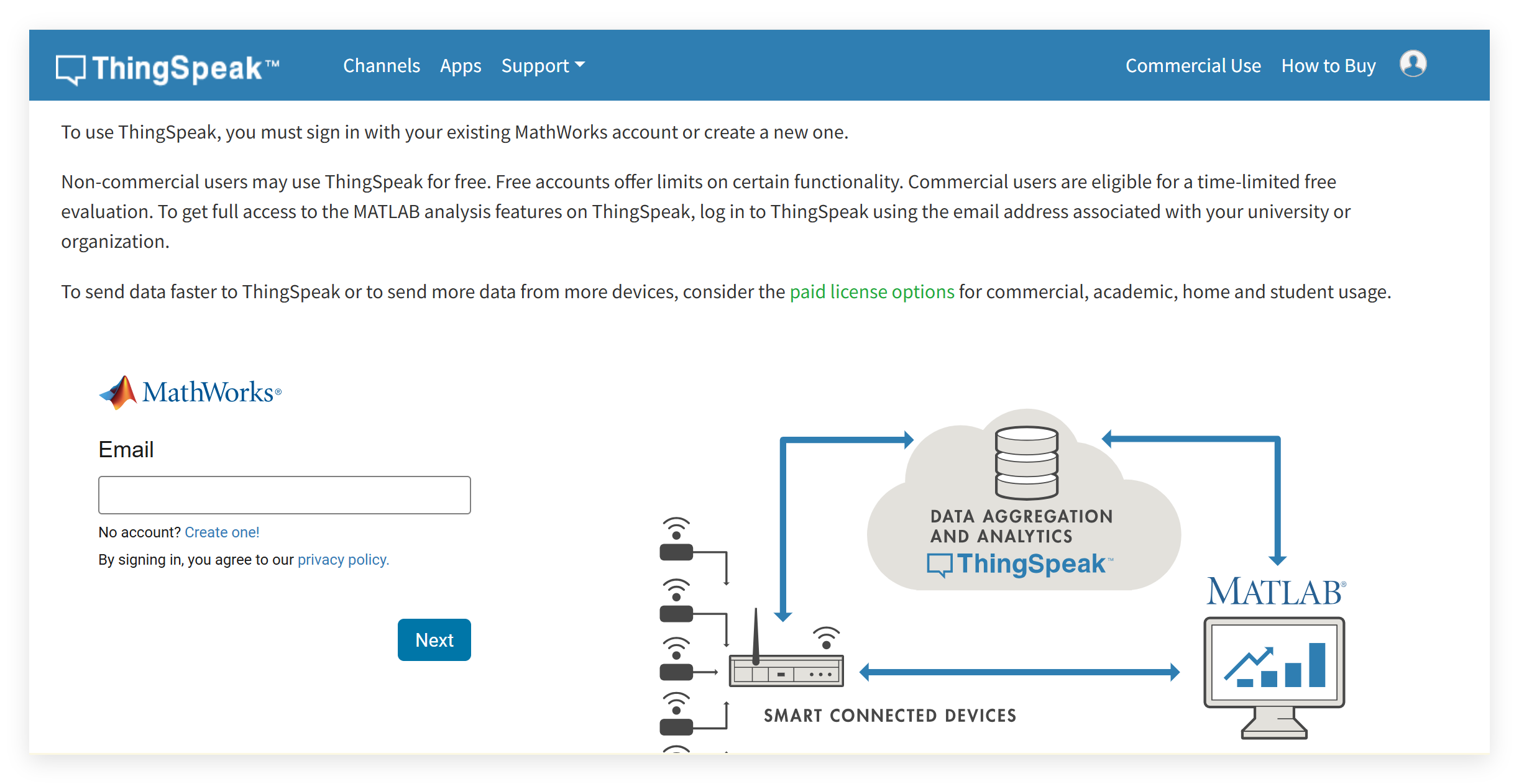

Data Parsing to ThingSpeak

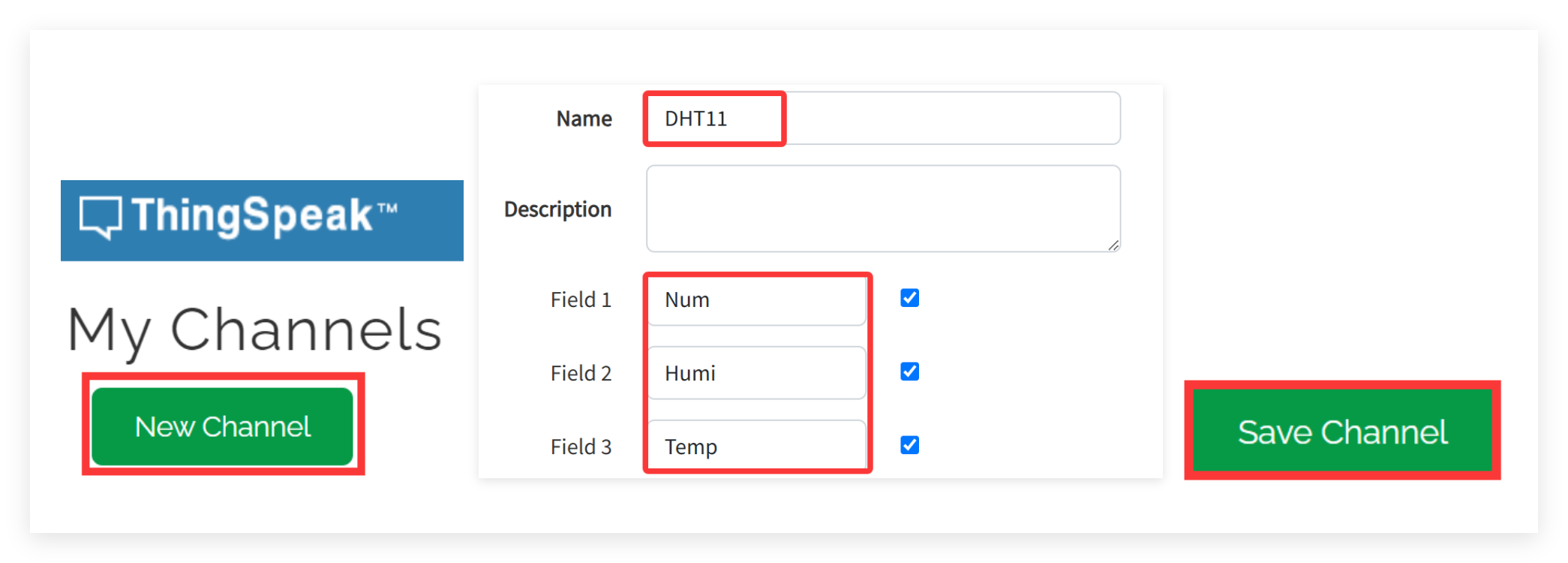

  • Click “New Channel”, fill in the Channel name and field names and click “Save Channel”.

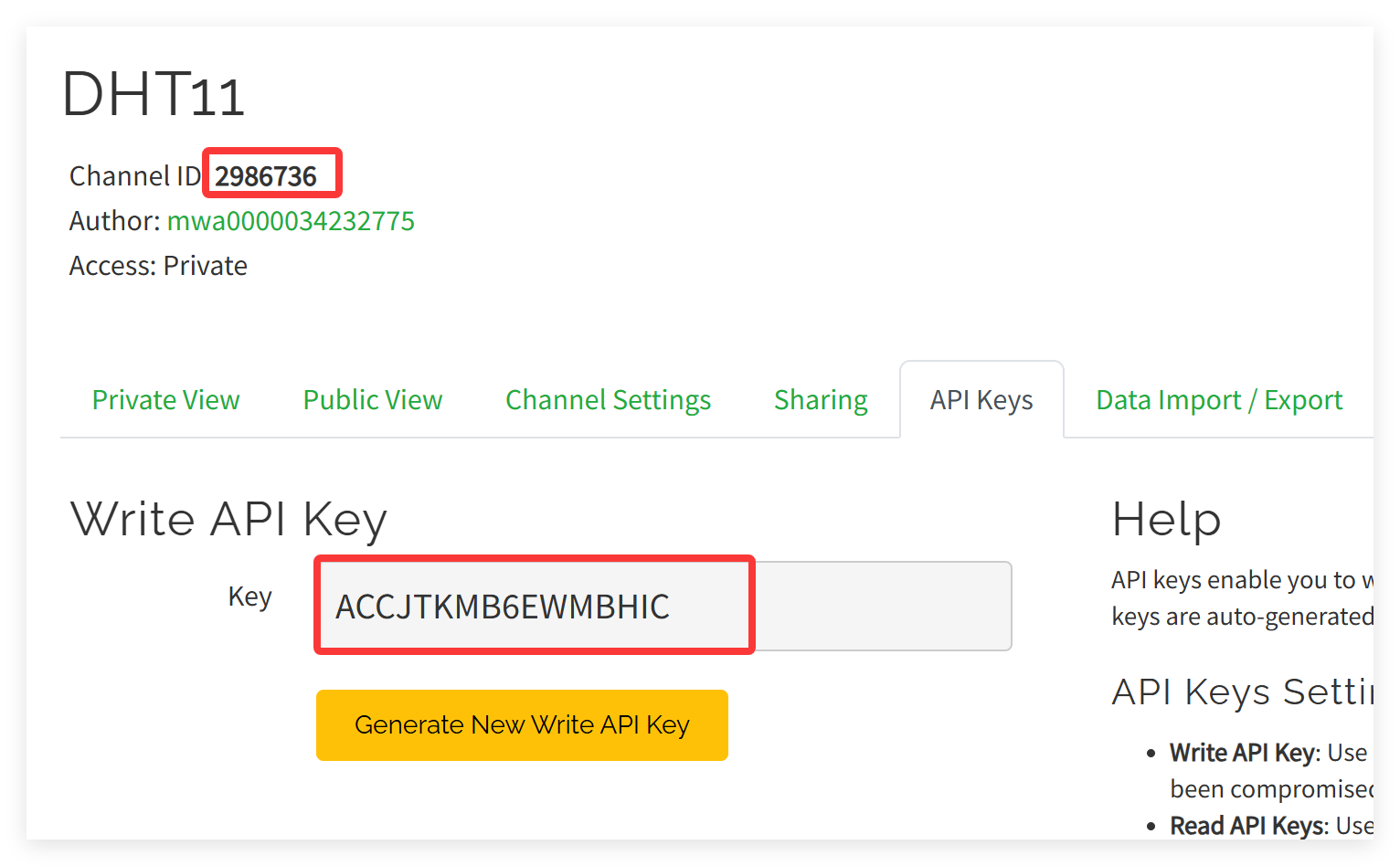

  • After successful creation, copy the Channel ID and API Key.

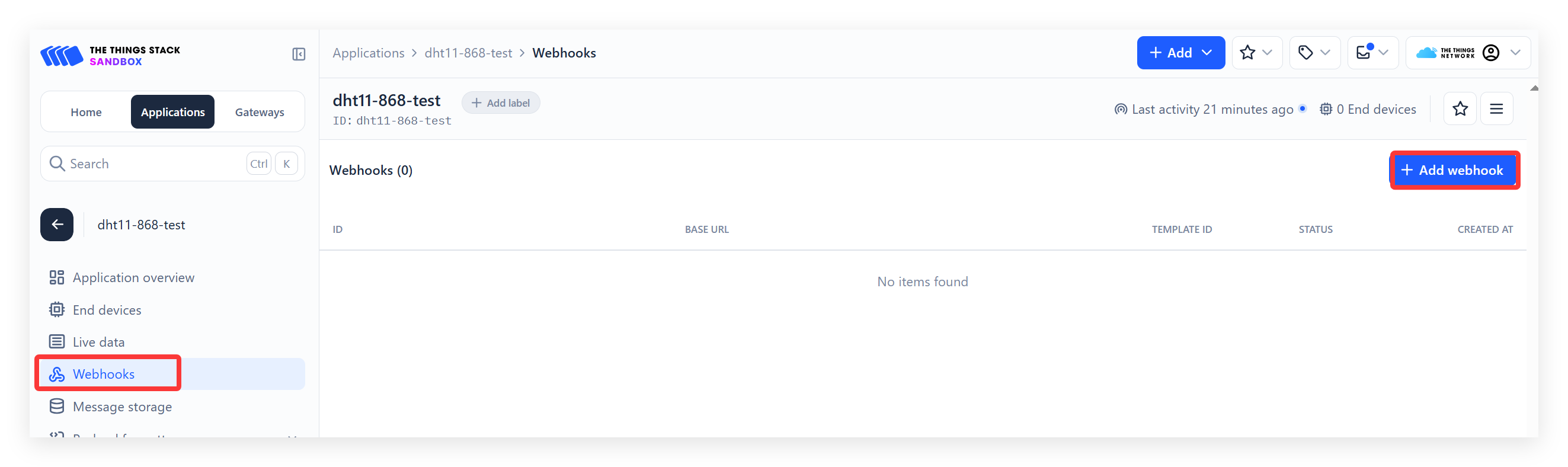

  • In the TTN, click “Webhooks” --> “+ Add webhook”.

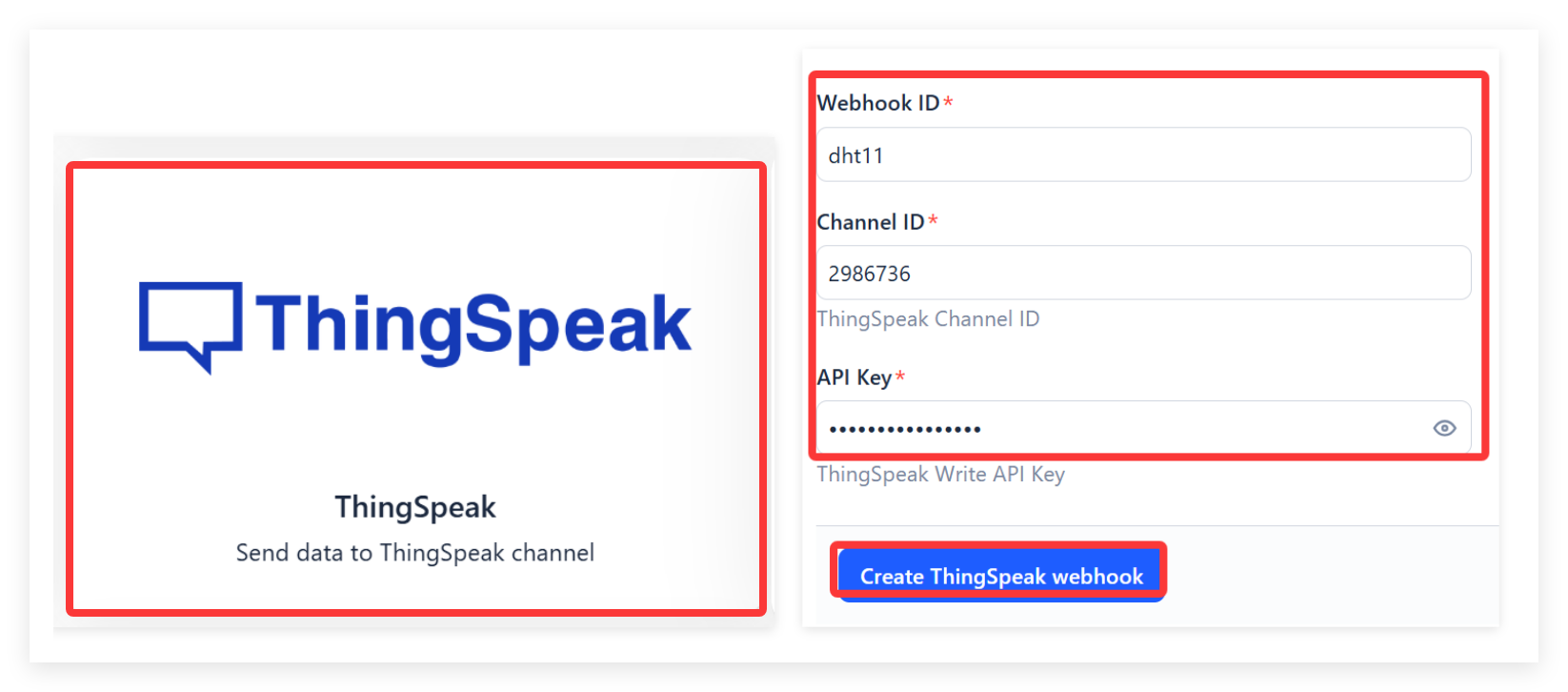

  • Select “ThingSpeak”, Fill in the Webhook ID and paste the Channel ID and API Key, click “Create ThingSpeak Webhook”.

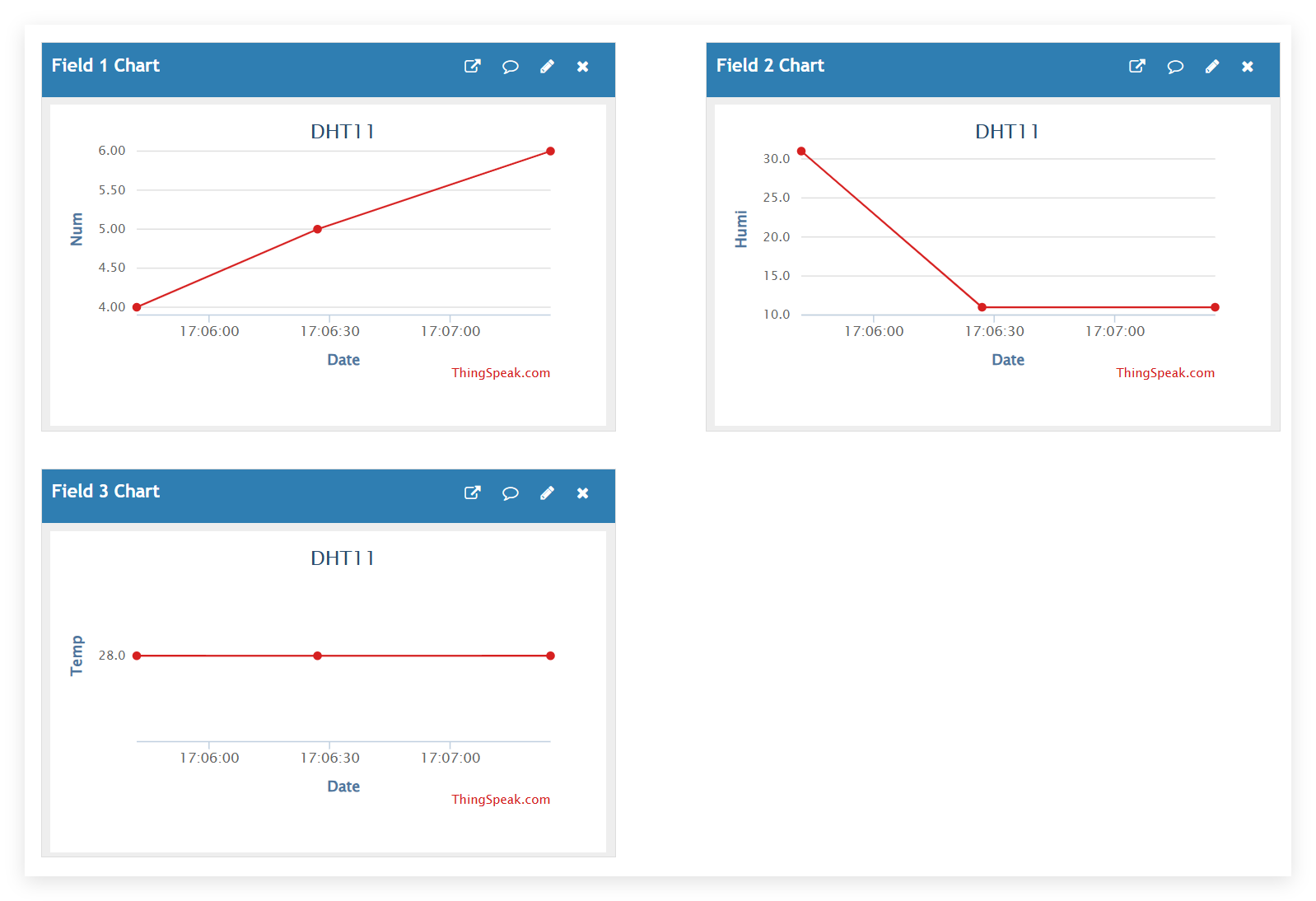

  • Press RES button, wait about a minute, you will successfully see the data in ThingSpeak.

ts ok.png

4.FAQ

You can list your question here or contact techsupport@makerfabs.com for technology support. Detailed descriptions of your question will be helped to solve your question.

5.Resource

Github

STM32L476xx Datasheet

LR1121 Datasheet
